CPX-4DA

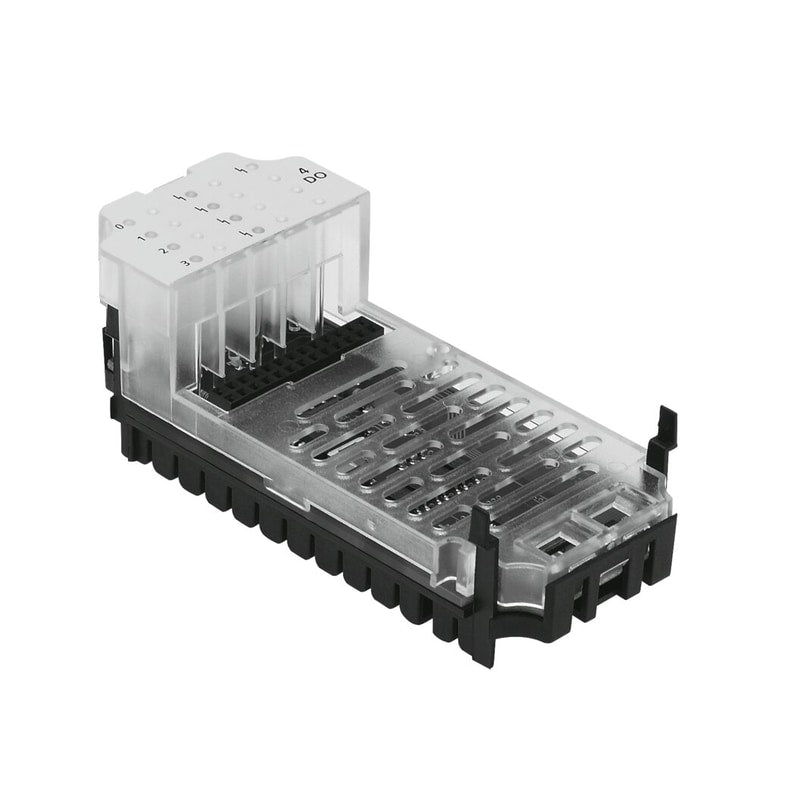

output module CPX-4DA for modular electrical terminal CPX, 4 digital outputs. Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of outputs=4, Diagnosis=(* - Short circuit/overload per channel, * - Undervoltage of outputs), Parameters configuring=(* Failsafe per channel, * Forces per channel, * Idle mode per channel, * - Behaviour after short circuit, * Module monitoring), LED displays=(* - 1 Group diagnosis, * - 4 Channel diagnosis, * - 4 Channel status)

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of outputs	4
Diagnosis	'- Short circuit/overload per channel- Undervoltage of outputs
Parameters configuring	Failsafe per channelForces per channelIdle mode per channel- Behaviour after short circuitModule monitoring
LED displays	'- 1 Group diagnosis- 4 Channel diagnosis- 4 Channel status
Protection (short circuit)	Internal electronic fuse protection per channel
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 16 mA
Max. power supply per channel	1 A (24 W lamp load)
Max. residual current outputs per module	0.166666666666667
Nominal operating voltage DC	24 V
Electrical isolation channel – internal bus	Yes, for intermediate supply
Electrical isolation channel – channel	No
