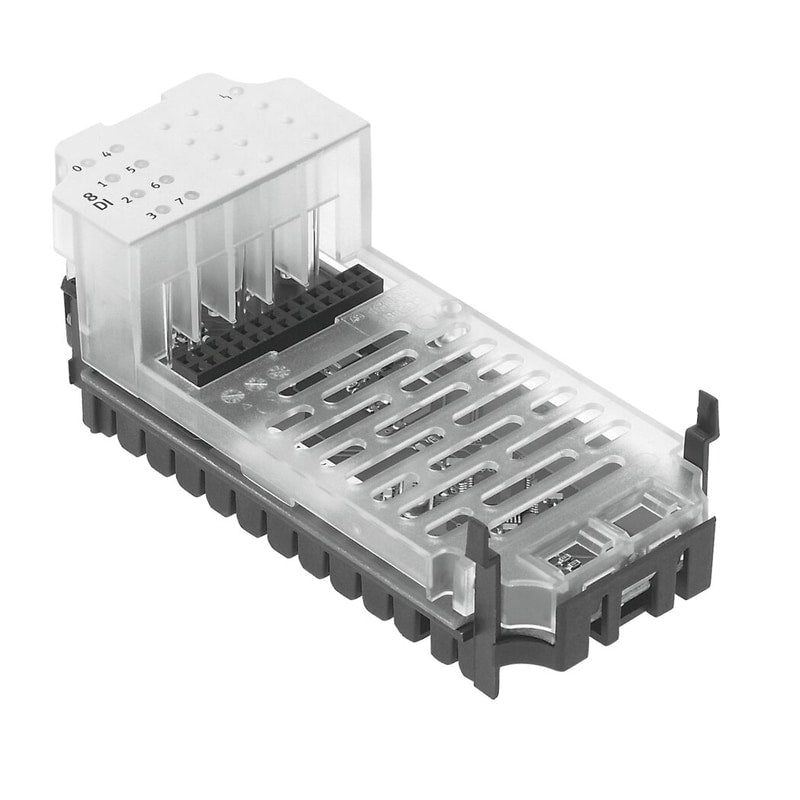

Input module
CPX-8DE
195750
GTIN 4052568015312
Vendor Festo
Regular price
$165.39
Unit price
CPX-8DE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-8DE
Regular price
$165.39
Unit price
CPX-8DE is backordered and will ship as soon as it is back in stock.
input module CPX-8DE for modular electrical terminal CPX, 8 digital inputs. Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of inputs=8, Diagnosis=- Short circuit/overload per channel, Parameters configuring=(* - Input debounce time, * - Signal extension time, * - Behaviour after short circuit, * Module monitoring), LED displays=(* - 1 Group diagnosis, * - 8 Channel status)
| Dimensions W x L x H | (incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm |
|---|---|
| No. of inputs | 8 |
| Diagnosis | '- Short circuit/overload per channel |
| Parameters configuring | '- Input debounce time- Signal extension time- Behaviour after short circuitModule monitoring |
| LED displays | '- 1 Group diagnosis- 8 Channel status |
| Input debounce time | 3 ms (0.1 ms, 10 ms, 20 ms, parameterisable) |
| Protection (short circuit) | Internal electronic fuse protection per module |
| Operating voltage range DC | 18 ... 30 V |
| Intrinsic current consumption at operating voltage | Typically 15 mA |
| Max. residual current inputs per module | 0.0416666666666667 |
| Nominal operating voltage DC | 24 V |
| Electrical isolation channel – internal bus | No |
| Electrical isolation channel – channel | No |
