CPX-FB6

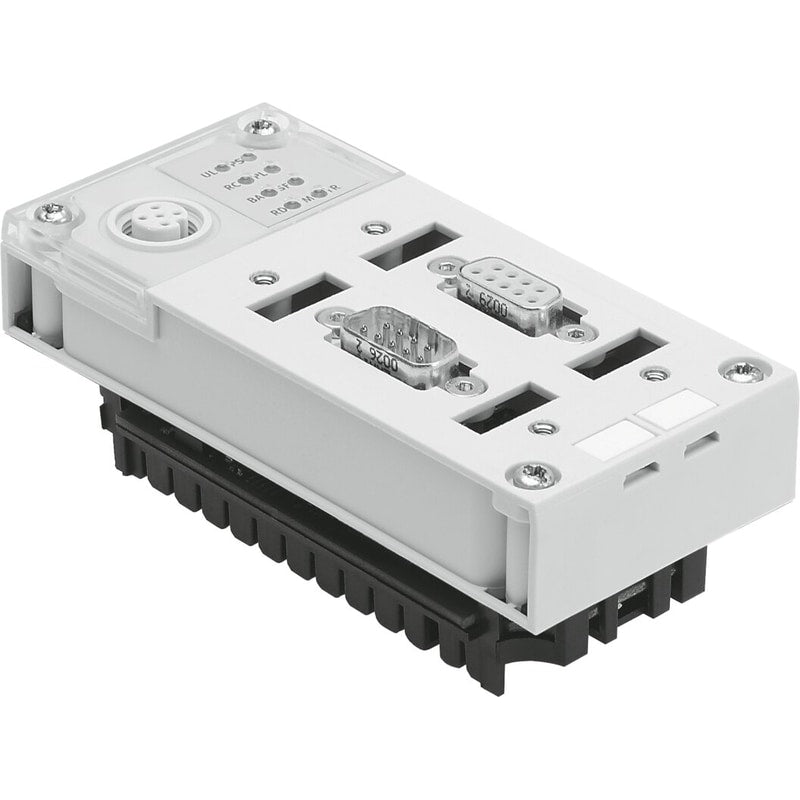

bus node CPX-FB6 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=(* 2 x Sub-D plug for self-assembly, * 2x M12x1, 5-pin, B-coded, * Sub-D socket and plug, 9-pin), Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Parameters configuring=(* - Diagnostic behaviour, * - Failsafe response, * - Forcing of channels, * - Signal setup, * - System parameter), Additional functions=(* - Acyclic data access via PCP channel, * Channel-oriented diagnostics via fieldbus, * Start-up parameterisation in normal text via fieldbus, * System status can be represented using process data, * Additional diagnostics interface for operator units)

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	2 x Sub-D plug for self-assembly2x M12x1, 5-pin, B-codedSub-D socket and plug, 9-pin
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Parameters configuring	'- Diagnostic behaviour- Failsafe response- Forcing of channels- Signal setup- System parameter
Additional functions	'- Acyclic data access via PCP channelChannel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switches
Baud rate	500, 2000 kBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 200 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	1 - Low corrosion stress
Storage temperature	'-20 ... 70 °C
Protection class	IP65IP67
