CPX-FB13

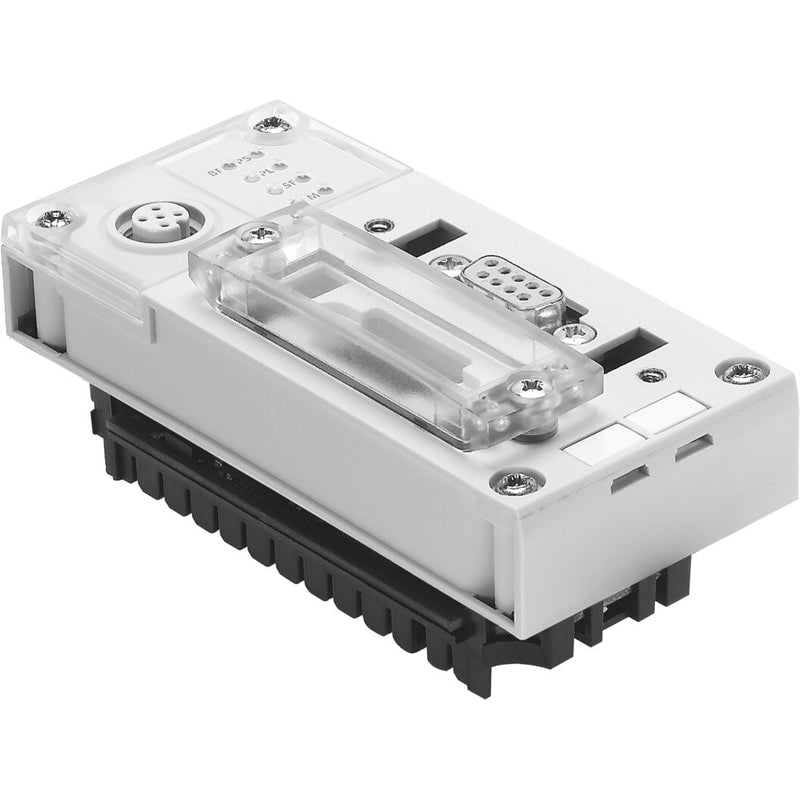

bus node CPX-FB13 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=(* 2x M12x1, 5-pin, B-coded, * Sub-D socket, 9-pin, * Sub-D plug, for self-assembly), Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Communication types=(* DPV0: cyclical communication, * DPV1: Acyclic communication), Configuration support=Device database file

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	2x M12x1, 5-pin, B-codedSub-D socket, 9-pinSub-D plug, for self-assembly
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Communication types	DPV0: cyclical communicationDPV1: Acyclic communication
Configuration support	Device database file
Parameters configuring	'- Diagnostic behaviour- Failsafe response- Forcing of channels- Signal setup- System parameter
Additional functions	'- Acyclic data access via DPV1Channel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switches
Baud rate	96 ... 12000 kBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 200 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	1 - Low corrosion stress
