Rod eye
CRSGS-M20X1,5
195585
GTIN 4052568158170
Vendor Festo
Regular price
$320.96
Unit price
CRSGS-M20X1,5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRSGS-M20X1,5
Regular price
$320.96
Unit price
CRSGS-M20X1,5 is backordered and will ship as soon as it is back in stock.

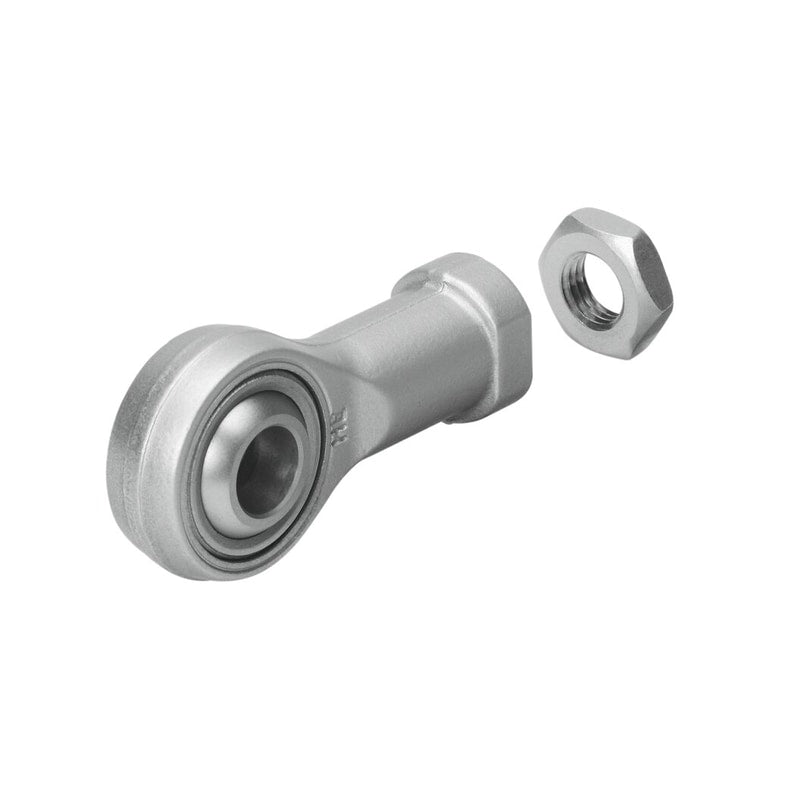

rod eye CRSGS-M20X1,5 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size=M20x1,5, Based on the standard=ISO 12240-4, Corrosion resistance classification CRC=4 - Very high corrosion stress, Ambient temperature=-40 - 150 °C, Product weight=464 g
| Size | M20x1,5 |
|---|---|
| Based on the standard | ISO 12240-4 |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 464 g |
| Materials note | Conforms to RoHS |
| Material of outer ring | High alloy steel |
| Material housing | High alloy steel |
| Material of inner ring | High alloy steel |
| Material nut | High alloy steel |
