Barb fitting

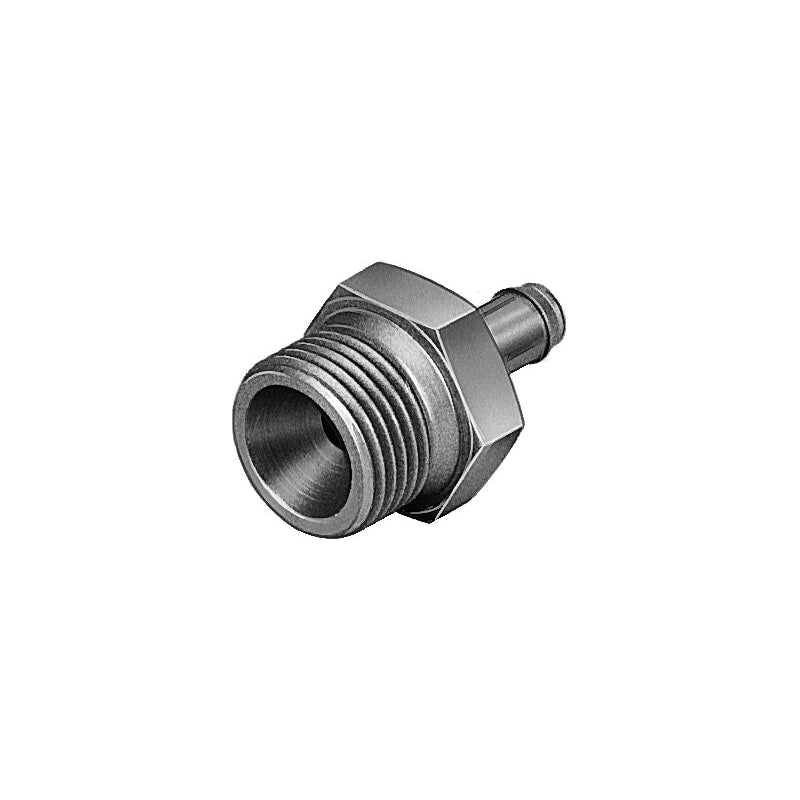

CN-M5-PK-2 Barbed fitting
19521
GTIN 4052568022563
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3 mm
- Nominal width
- 1.5 mm
- Ambient temperature
- 0 °C - 60 °C
Regular price
$3.33
Unit price
CN-M5-PK-2 Barbed fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CN-M5-PK-2 Barbed fitting
Regular price
$3.33
Unit price
CN-M5-PK-2 Barbed fitting is backordered and will ship as soon as it is back in stock.
barbed fitting CN-M5-PK-2 For plastic tubing PAN, PUN, PP, PU, PR, with sealing ring Nominal size=1,5 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 1.5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | 0 ... 60 °C |
| connection 1 | Male thread M5 |
| connection 2 | 3mm outside diameter, for tubing |
| Materials note | Conforms to RoHS |
| Material housing | Steel |
