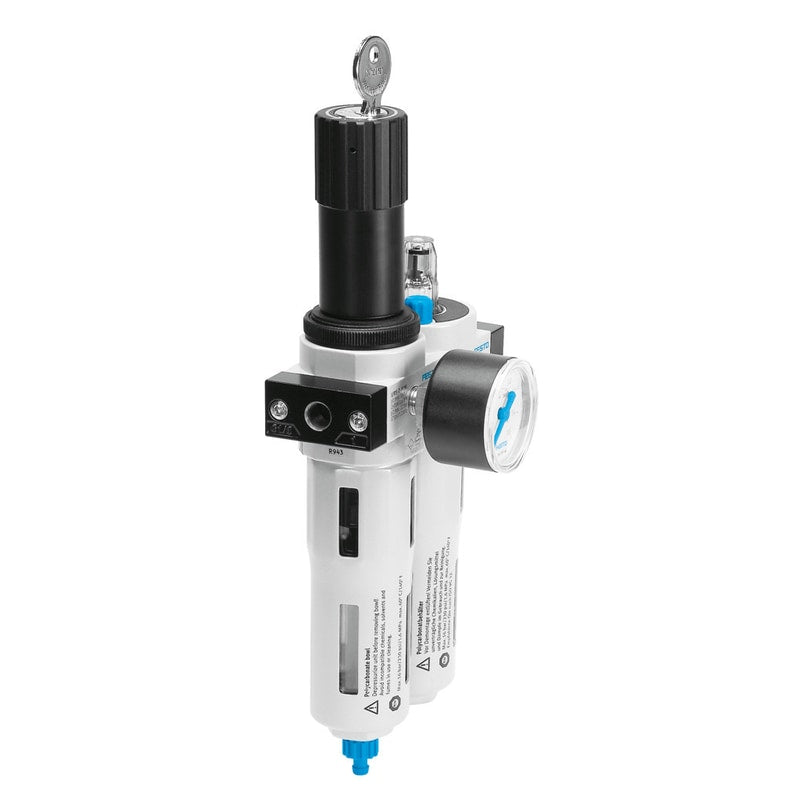

Service unit
FRCS-1/2-D-MIDI-A
194913
GTIN 4052568156428
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 2600 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$726.45
Unit price
Service unit FRCS-1/2-D-MIDI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRCS-1/2-D-MIDI-A
Regular price
$726.45
Unit price
Service unit FRCS-1/2-D-MIDI-A is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Type code | FRCS |
| Series | D |
| Actuator lock | Rotary knob with integrated lock |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Fully automatic |
| Design | Filter regulator with pressure gaugeProportional standard oil mist lubricator |
| Max. condensate volume | 43 ml |
| Grade of filtration | 40 µm |
| Bowl guard | Metal bowl guard |

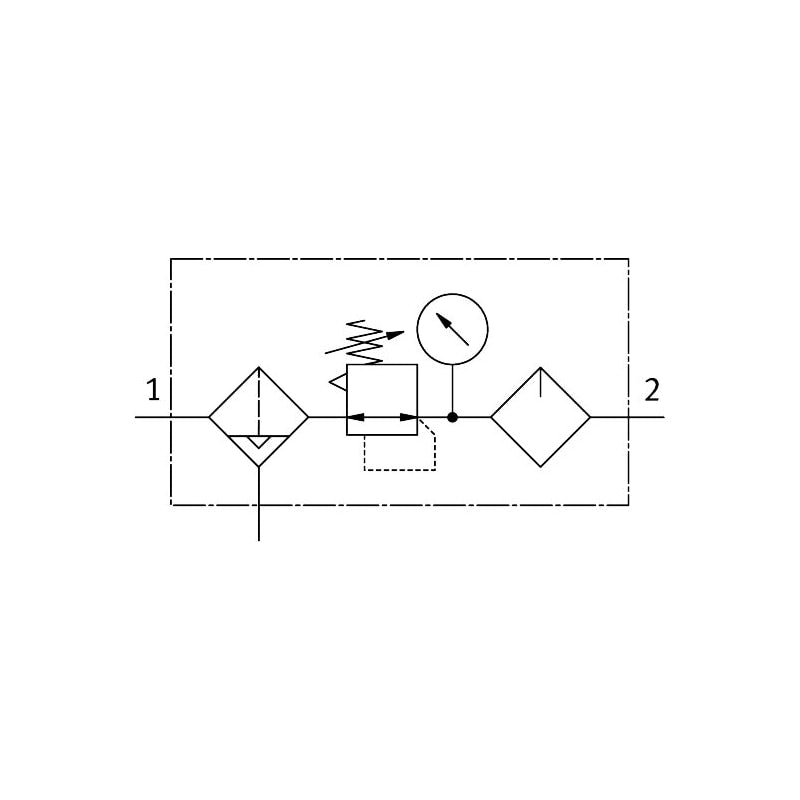

| Symbol | 991509 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar ... 12 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 2600 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:9:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:-]Inert gas |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 1680 g |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
