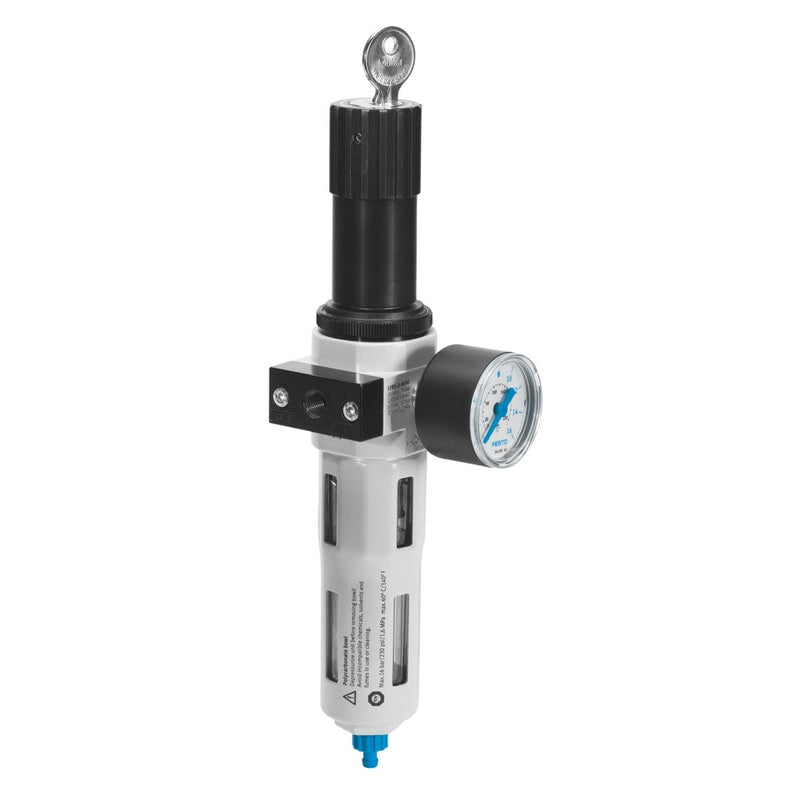

Filter regulator
LFRS-1/2-D-5M-MIDI
194764
GTIN 4052568154943
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 2600 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$487.40
Unit price
Filter regulator LFRS-1/2-D-5M-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFRS-1/2-D-5M-MIDI
Regular price
$487.40
Unit price
Filter regulator LFRS-1/2-D-5M-MIDI is backordered and will ship as soon as it is back in stock.
filter regulator LFRS-1/2-D-5M-MIDI With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size=Midi, Series=D, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | Midi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Filter regulator with pressure gauge |
| Max. condensate volume | 43 cm3 |
| Bowl guard | Metal bowl guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 ... 16 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
