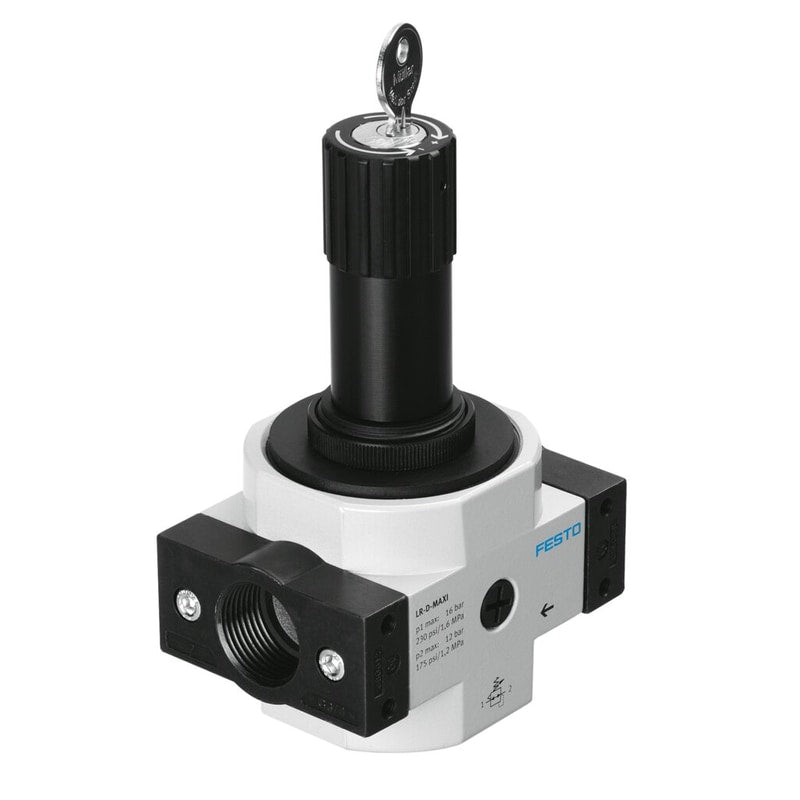

Pressure regulator
LRS-1/2-D-7-O-MIDI
194648
GTIN 4052568153847
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 4000 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.2 bar
Regular price
$395.30
Unit price
Pressure regulator LRS-1/2-D-7-O-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRS-1/2-D-7-O-MIDI
Regular price
$395.30
Unit price
Pressure regulator LRS-1/2-D-7-O-MIDI is backordered and will ship as soon as it is back in stock.
pressure regulator LRS-1/2-D-7-O-MIDI With lockable regulator head, working pressure up to 7 bar. Size=Midi, Series=D, Actuator lock=Rotary knob with integrated lock, Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| Size | Midi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaust |
| Pressure gauge | Prepared for G1/4 |
| Operating pressure | 0 ... 16 bar |
| Pressure regulation range | 0.5 ... 7 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 4,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
