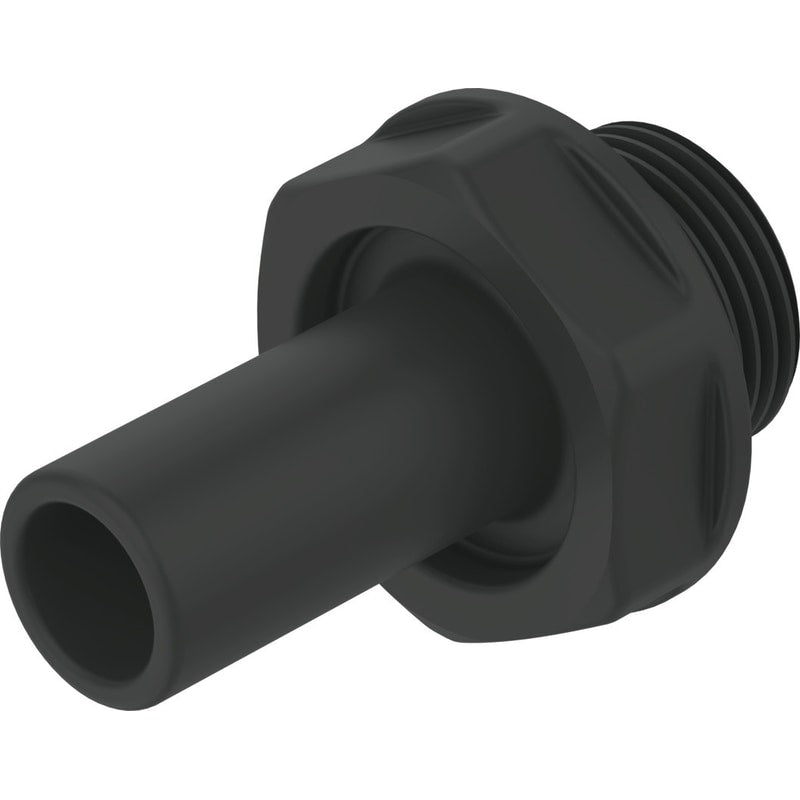

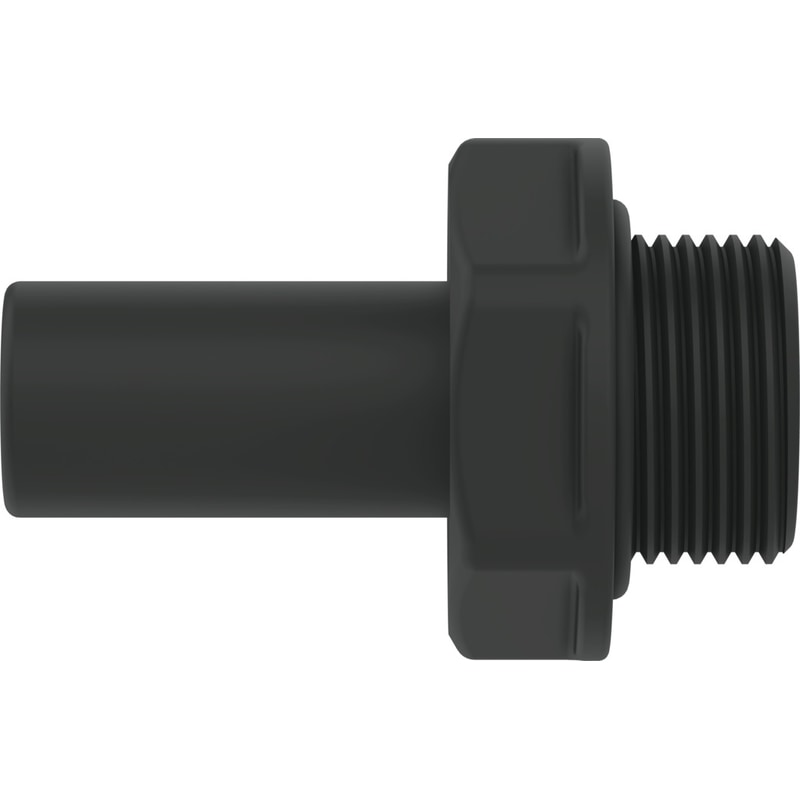

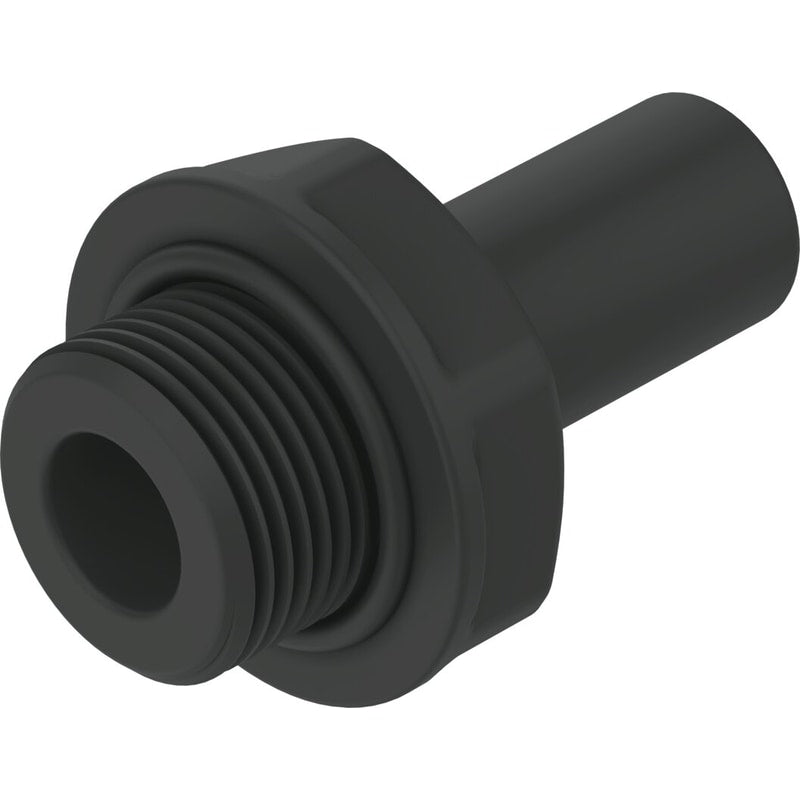

Push-in fitting
CQ-1-28H
194589
GTIN 4052568080617
Vendor Festo
- Pneumatic connection 1
- External thread, G1
- Pneumatic connection 2
- Push-in sleeve CQ-28
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -25 °C - 70 °C
- Nominal width
- 23 mm
Regular price
$48.02
Unit price
CQ-1-28H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CQ-1-28H
Regular price
$48.02
Unit price
CQ-1-28H is backordered and will ship as soon as it is back in stock.
push-in fitting CQ-1-28H For high flow rates. Nominal size=23 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Push-in Sleeve |
|---|---|
| Nominal size | 23 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 7 bar |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-25 ... 70 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 62.5 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 200 g |
| connection 1 | Male thread G1 |
| connection 2 | Push-in sleeve CQ-28 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Brass |
