Throttle valve
GRO-QS-3
193971
GTIN 4052568044183
Vendor Festo
- Valve function
- Flow control function
- Standard nominal flow rate in flow control direction
- 85 l/min
- Pneumatic connection 1
- QS-3
- Operating pressure
- 0 bar - 10 bar
- Adjusting element
- Knurled screw
Regular price
$34.81
Unit price
GRO-QS-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRO-QS-3
Regular price
$34.81
Unit price
GRO-QS-3 is backordered and will ship as soon as it is back in stock.

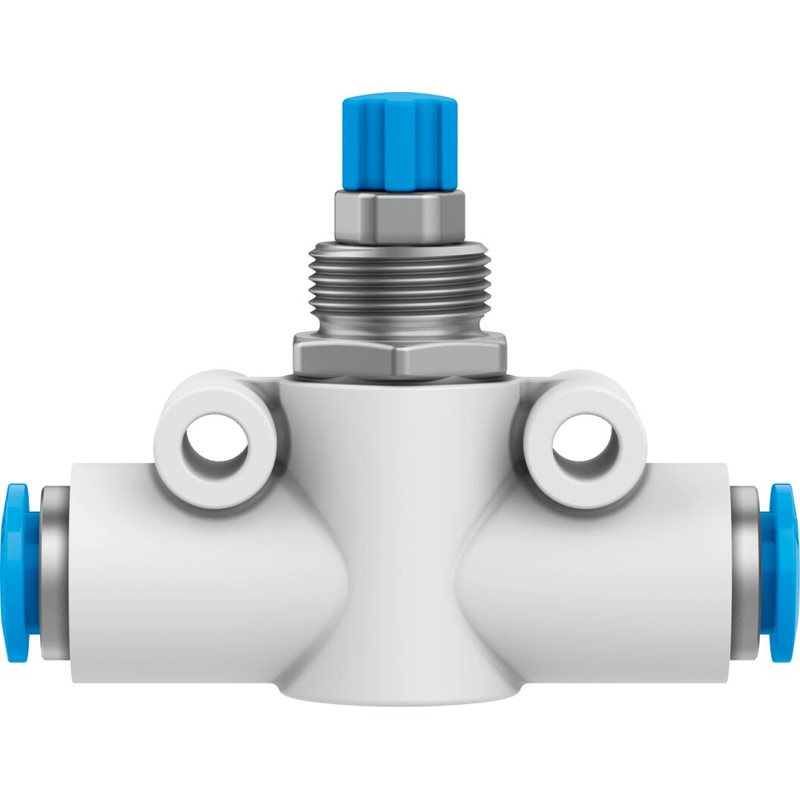

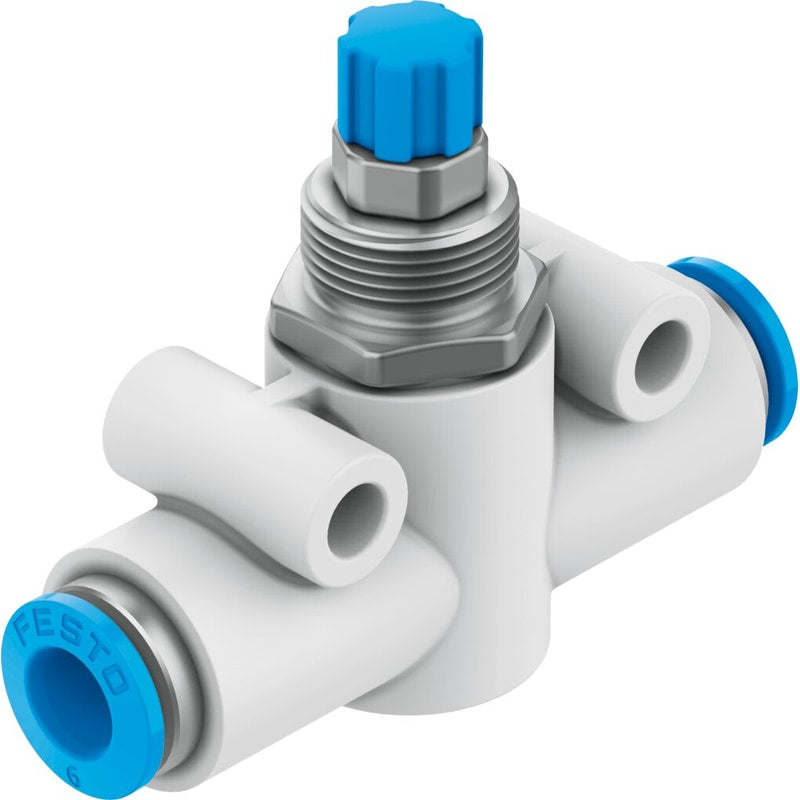

flow control valve GRO-QS-3 without non-return function Valve function=Throttle function, Pneumatic connection, port 1=QS-3, Pneumatic connection, port 2=QS-3, Adjusting element=Knurled screw, Mounting type=(* Optional, * Front panel installation, * with through hole, * with accessories)
| Valve function | Throttle function |
|---|---|
| connection 1 | QS-3 |
| connection 2 | QS-3 |
| Adjusting element | Knurled screw |
| Mounting type | OptionalFront panel installationwith through holewith accessories |
| Standard nominal flow rate in flow control direction | 85 l/min |
| Standard nominal flow rate in non-return direction | 120 l/min |
| Operating pressure | 0 ... 10 bar |
| Ambient temperature | '-10 ... 60 °C |
| Material housing | PA-reinforced |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Design | Inline |
