One-way flow control valve
GR-QS-4
193967
GTIN 4052568044169
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 110 l/min
- Pneumatic connection 1
- QS-4
- Adjusting element
- Knurled screw
Regular price
$38.82
Unit price
GR-QS-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GR-QS-4
Regular price
$38.82
Unit price
GR-QS-4 is backordered and will ship as soon as it is back in stock.

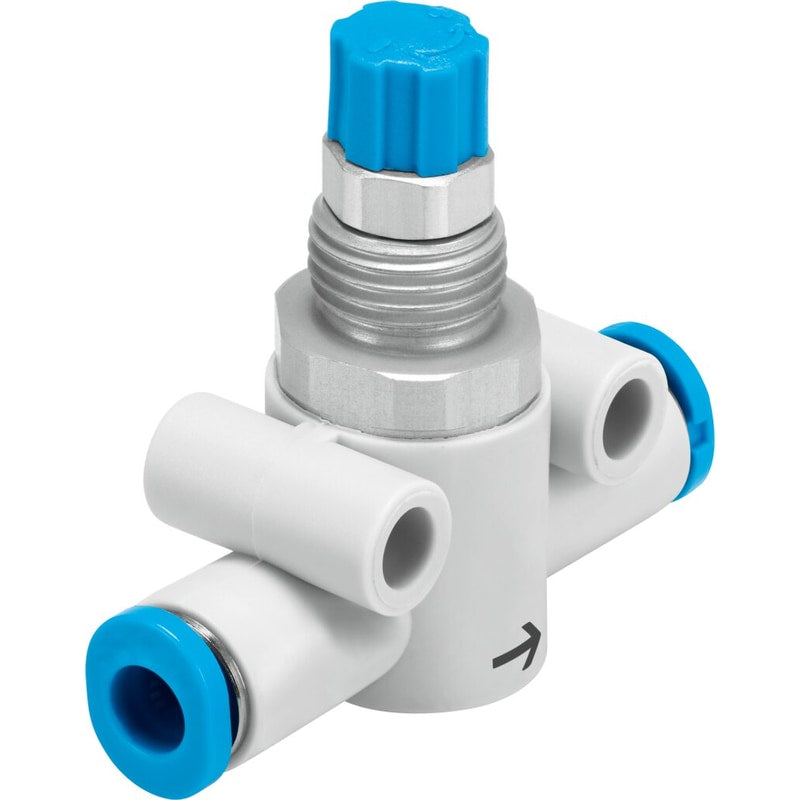

one-way flow control valve GR-QS-4 Part number: 193967 With flow adjustable in one direction.
| Valve function | One-way flow control function |
|---|---|
| connection 1 | 4 |
| connection 2 | 4 |
| Adjusting element | Knurled screw |
| Mounting type | OptionalFront panel installationwith through holewith accessories |
| Standard nominal flow rate in flow control direction | 110 l/min |
| Standard nominal flow rate in non-return direction | 165 l/min |
| Operating pressure | 0.2 ... 10 bar |
| Ambient temperature | '-10 ... 60 °C |
| Material housing | PA-reinforced |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Design | Inline |
