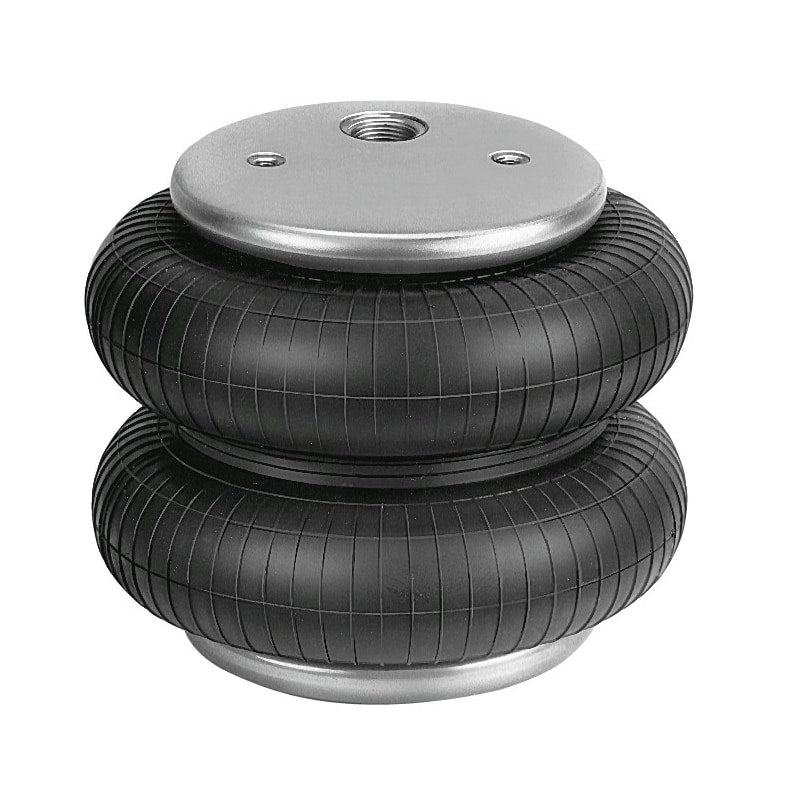

Bellow cylinder
EB-385-230
193791
GTIN 4052568153403
Vendor Festo
- Size
- 385
- Stroke
- 230 mm
- Pneumatic connection
- G1/4
Regular price
$1,165.97
Unit price
EB-385-230 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-385-230
Regular price
$1,165.97
Unit price
EB-385-230 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-385-230 Part number: 193791 Maintenance-free, no stick/slip effect.
| Size | 385 |
|---|---|
| Required installation diameter | 400 mm |
| Stroke | 230 mm |
| Max height when extended | 310 mm |
| Max. tipping angle | 20 deg |
| Max. offset | 20 mm |
| Min. installation height | 77 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
