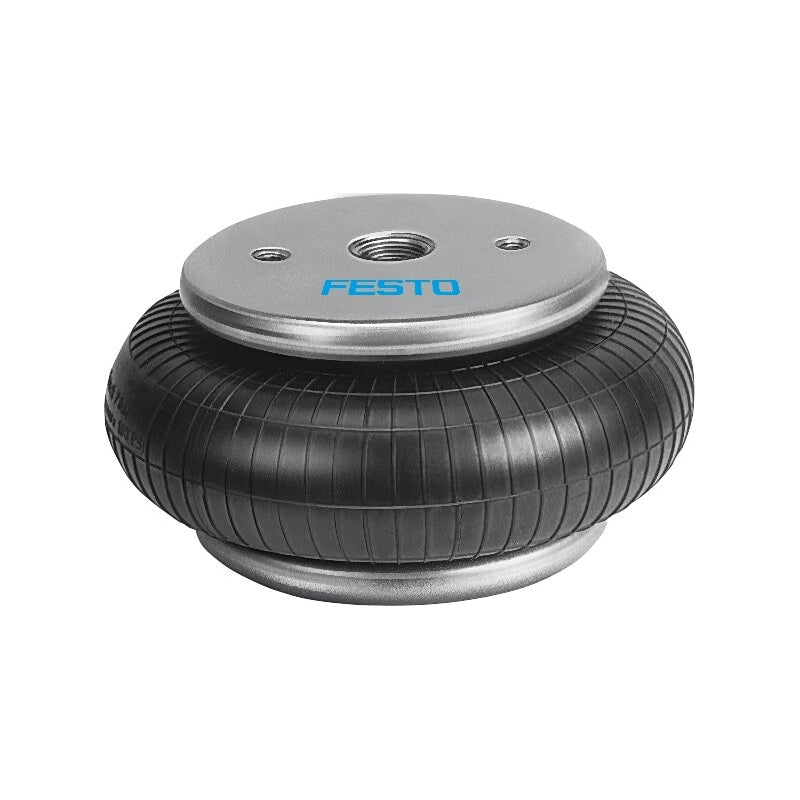

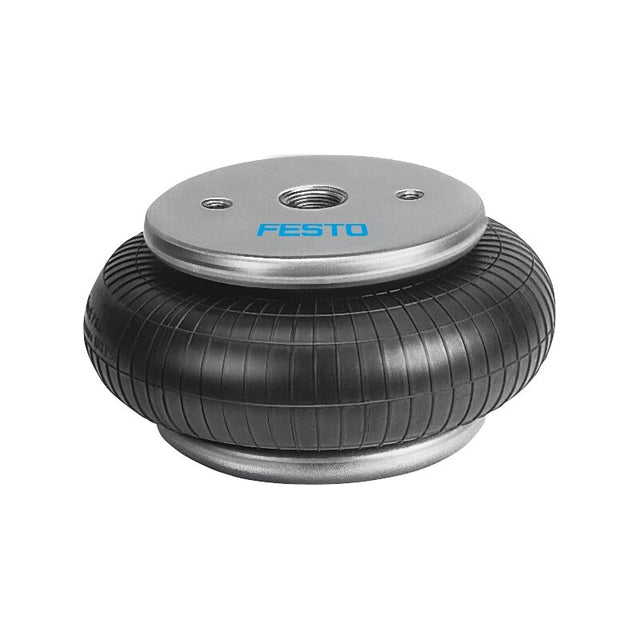

Bellow cylinder
EB-385-115
193789
GTIN 4052568153380
Vendor Festo
- Size
- 385
- Stroke
- 115 mm
- Pneumatic connection
- G1/4
Regular price
$1,106.09
Unit price
EB-385-115 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-385-115
Regular price
$1,106.09
Unit price
EB-385-115 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-385-115 Part number: 193789 Maintenance-free, no stick/slip effect.
| Size | 385 |
|---|---|
| Required installation diameter | 400 mm |
| Stroke | 115 mm |
| Max height when extended | 175 mm |
| Max. tipping angle | 15 deg |
| Max. offset | 10 mm |
| Min. installation height | 51 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
