Vacuum generator
VN-05-L-T3-PQ2-VA4-RO1
193609
GTIN 4052568080426
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. suction rate with respect to atmosphere
- 15.7 l/min
Regular price
$74.02
Unit price
VN-05-L-T3-PQ2-VA4-RO1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-05-L-T3-PQ2-VA4-RO1
Regular price
$74.02
Unit price
VN-05-L-T3-PQ2-VA4-RO1 is backordered and will ship as soon as it is back in stock.

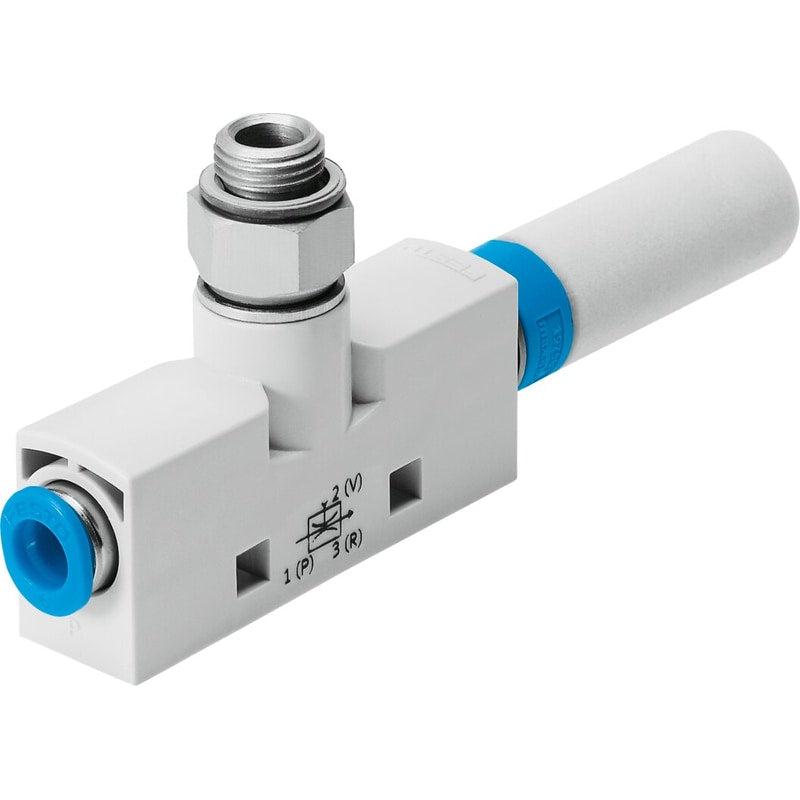

vacuum generator VN-05-L-T3-PQ2-VA4-RO1 Part number: 193609 Standard, high suction rate, width 14 mm, T shape with plug connector and open silencer Vacuum connection with male thread.
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 14 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High suction flow rateStandard |
| Integrated function | Open silencer |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 5 bar |
| Operating pressure | 1 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 15.7 l/min |
| Air supply time at nominal operating pressure | 1.7 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
