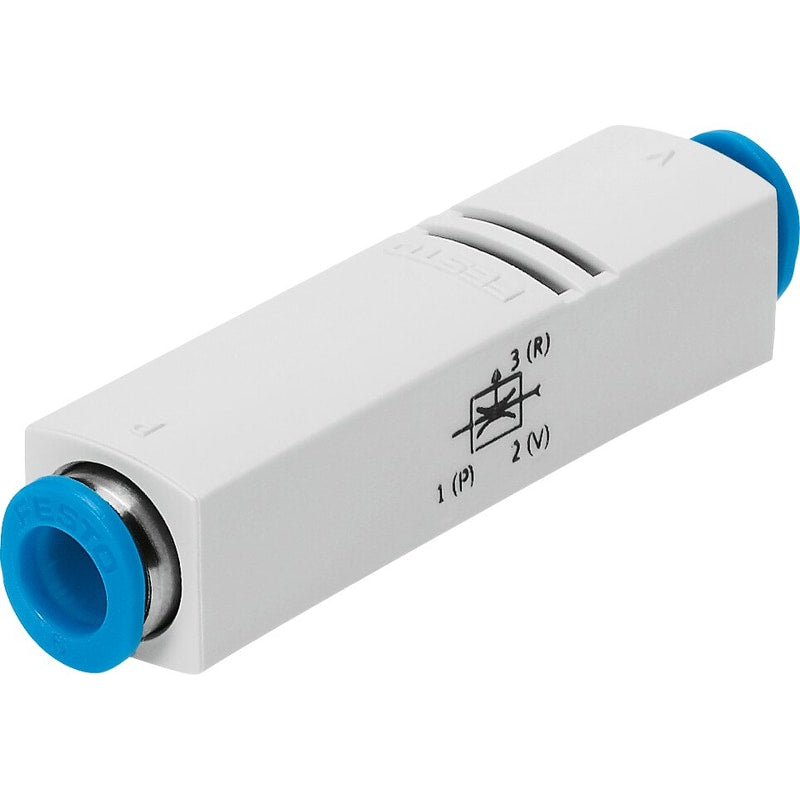

Vacuum generator
VN-07-M-I2-PQ1-VQ1
193586
GTIN 4052568080310
Vendor Festo
- Nominal width of Laval nozzle
- 0.7 mm
- Max. vacuum
- 86 %
- Max. suction rate with respect to atmosphere
- 13.5 l/min
Regular price
$54.65
Unit price
VN-07-M-I2-PQ1-VQ1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-07-M-I2-PQ1-VQ1
Regular price
$54.65
Unit price
VN-07-M-I2-PQ1-VQ1 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-07-M-I2-PQ1-VQ1 Part number: 193586 In-line, high vacuum, width 10 mm, with plug connector.
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Grid dimension | 10 mm |
| Assembly position | Any |
| Ejector characteristic | High vacuumInline |
| Design structure | Straight design |
| Operating pressure for max. suction rate | 7 bar |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 5.8 bar |
| Max. vacuum | 0.86 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 13.5 l/min |
| Air supply time at nominal operating pressure | 2 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
