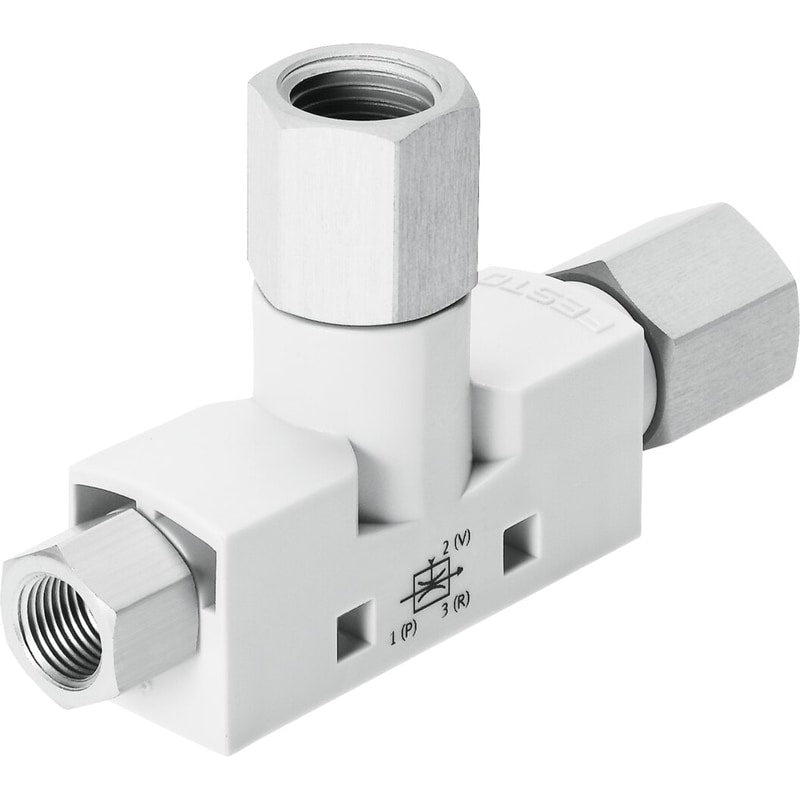

Vacuum generator
VN-14-L-T4-PI4-VI5-RI5
193585
GTIN 4052568080303
Vendor Festo
- Nominal width of Laval nozzle
- 1.4 mm
- Max. suction rate with respect to atmosphere
- 90 l/min
Regular price
$63.60
Unit price
VN-14-L-T4-PI4-VI5-RI5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-14-L-T4-PI4-VI5-RI5
Regular price
$63.60
Unit price
VN-14-L-T4-PI4-VI5-RI5 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-14-L-T4-PI4-VI5-RI5 Part number: 193585 Standard, high suction volume flow, 18 mm width, T-form with internal thread
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Grid dimension | 18 mm |
| Assembly position | Any |
| Ejector characteristic | High suction flow rateStandard |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 8 bar |
| Operating pressure | 1 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 90 l/min |
| Air supply time at nominal operating pressure | 0.25 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
