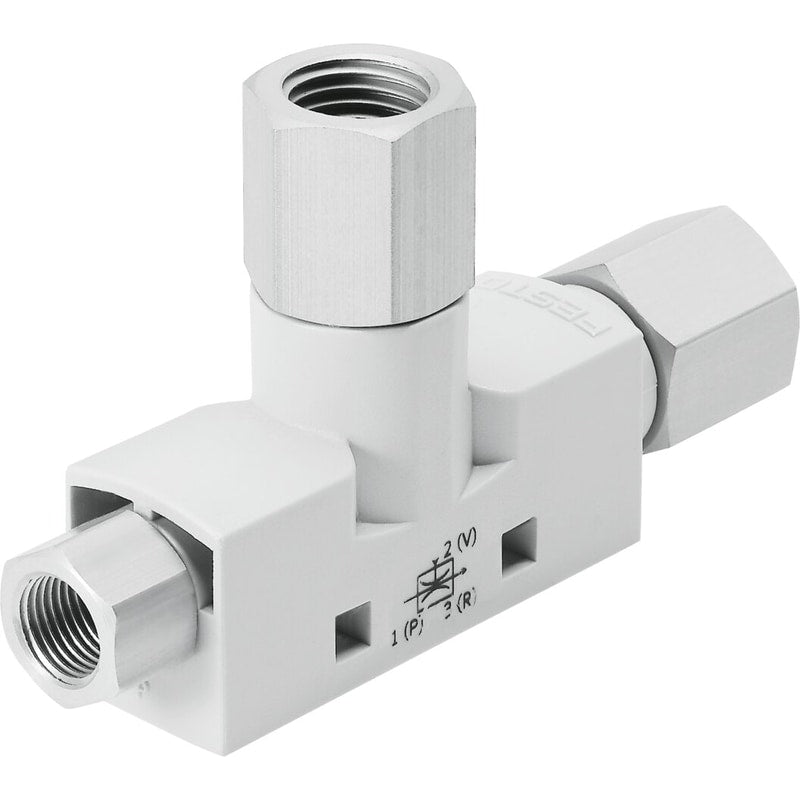

Vacuum generator
VN-07-H-T3-PI4-VI4-RI4
193499
GTIN 4052568079918
Vendor Festo
- Nominal width of Laval nozzle
- 0.7 mm
- Max. vacuum
- 88 %
- Max. suction rate with respect to atmosphere
- 16 l/min
Regular price
$54.65
Unit price
VN-07-H-T3-PI4-VI4-RI4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-07-H-T3-PI4-VI4-RI4
Regular price
$54.65
Unit price
VN-07-H-T3-PI4-VI4-RI4 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-07-H-T3-PI4-VI4-RI4 Part number: 193499 Standard, high vacuum, width 14 mm, T shape with female thread
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Grid dimension | 14 mm |
| Assembly position | Any |
| Ejector characteristic | High vacuumStandard |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 2.1 bar |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 4.7 bar |
| Max. vacuum | 0.88 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 16 l/min |
| Air supply time at nominal operating pressure | 1.9 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
