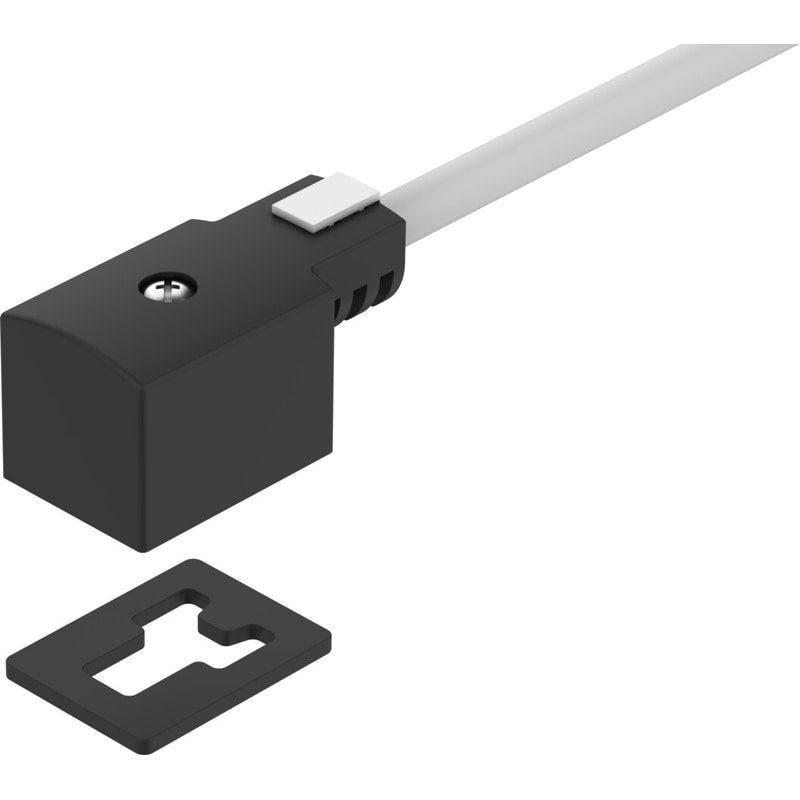

Plug socket with cable
KMV-1-24-10-LED
193456
GTIN 4052568079796
Vendor Festo
- Electrical connection
- Form B
- Cable length
- 10 m
Regular price
$45.14
Unit price
KMV-1-24-10-LED is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMV-1-24-10-LED
Regular price
$45.14
Unit price
KMV-1-24-10-LED is backordered and will ship as soon as it is back in stock.
| Type code | KMV |
|---|---|
| Switching status indication | LED |
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 620 g |
| Electrical connection | Form BSocket |
| Nominal operating voltage DC | 24 V |
| Reverse polarity protection | for all electrical connections |
| Protective earth connection | Available |
| Cable length | 10 m |
| Cable diameter | 6 mm |
| Cable design | 3 x 0.75 mm² |
| Degree of protection | IP67as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PC |
| Material of pin contacts | Bronze |
| Mounting position | Any |
