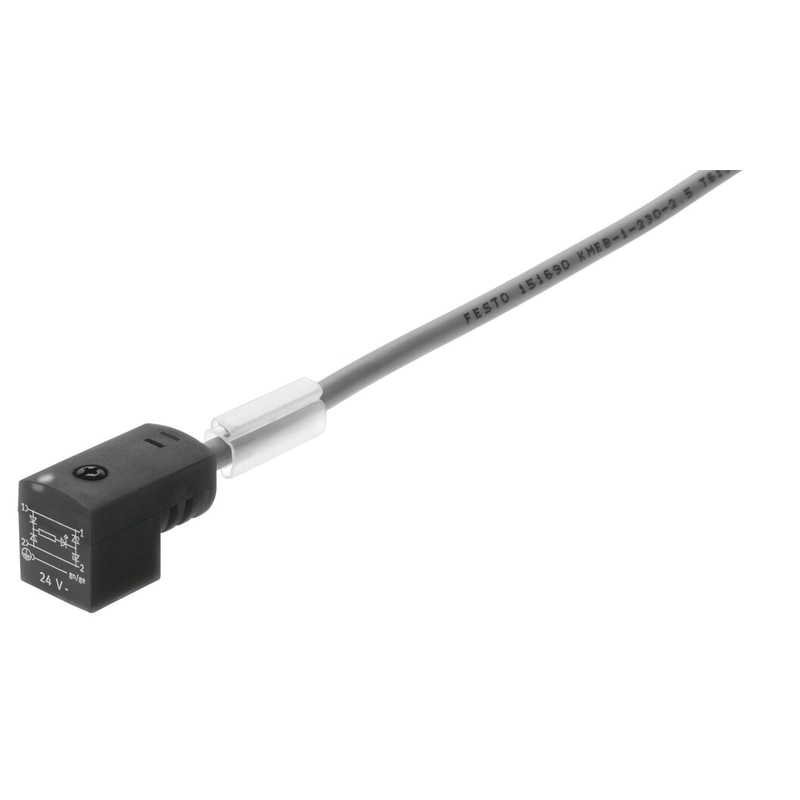

Plug socket with cable
KME-1-24-10-LED
193455
GTIN 4052568079789
Vendor Festo
- Electrical connection 1
- Angled socket, rectangular design, 3-pin, form C
- Electrical connection 2
- Open end, 2-wire
- Cable length
- 10 m
Regular price
$85.81
Unit price
KME-1-24-10-LED is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KME-1-24-10-LED
Regular price
$85.81
Unit price
KME-1-24-10-LED is backordered and will ship as soon as it is back in stock.
| Type code | KME |
|---|---|
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 570 g |
| Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Open end, 2-wire |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 0.166666666666667 |
| Protective earth connection | Not available |
| Cable length | 10 m |
| Cable characteristic | for static applications |
| Min. cable bending radius | 52 mm |
| Cable diameter | 5.2 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 2 x 0.75 mm² |
| Degree of protection | IP67as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | TPE-U(PU) |
| Seals material | NBR |
| Material of pin contacts | Bronze |
| Mounting position | Any |
