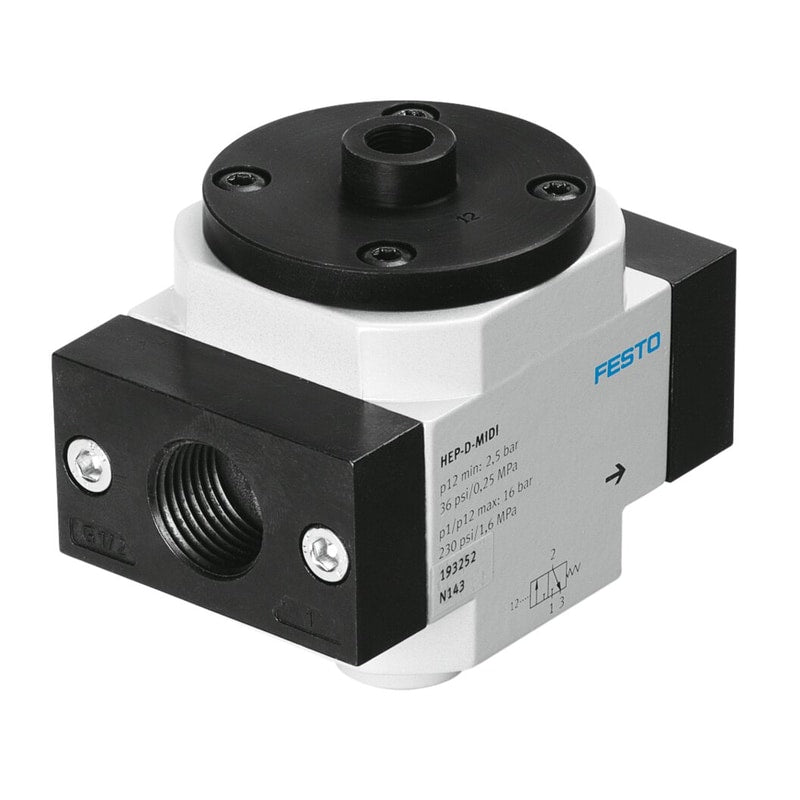

On/off valve HEP-1/2-D-MIDI
193252
Vendor Festo
Regular price
$221.18
Unit price
On/off valve HEP-1/2-D-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
On/off valve HEP-1/2-D-MIDI
Regular price
$221.18
Unit price
On/off valve HEP-1/2-D-MIDI is backordered and will ship as soon as it is back in stock.
on-off valve HEP-1/2-D-MIDI Part number: 193252 Classic Used in conjunction with service units. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Design structure | Piston slide |
|---|---|
| Type of actuation | pneumatic |
| Sealing principle | soft |
| Exhaust-air function | not throttleable |
| Manual override | None |
| Type of reset | mechanical spring |
| Valve function | 3/2 closed, monostable |
| Operating pressure | 0 ... 16 bar |
| Pilot pressure | 3 ... 16 bar |
| C value | 16.6 l/sbar |
| b value | 0.4 |
| Standard nominal flow rate | 3,900 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
