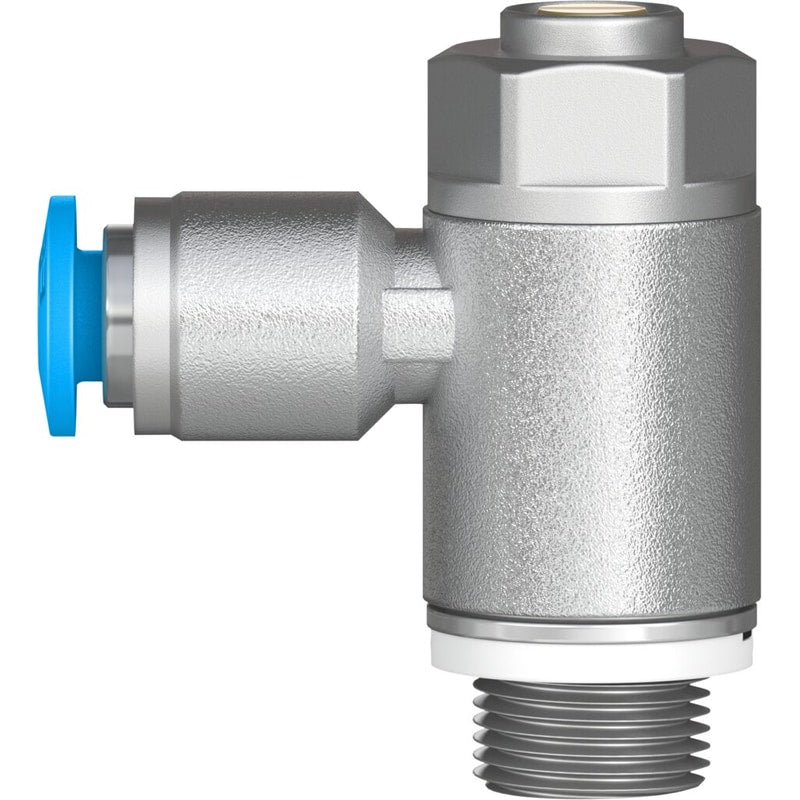

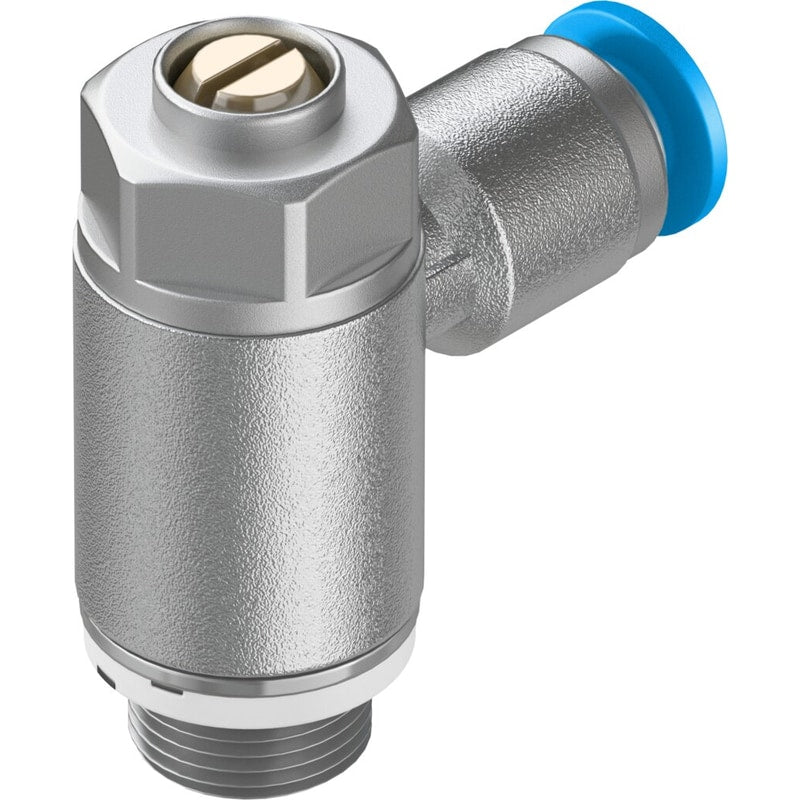

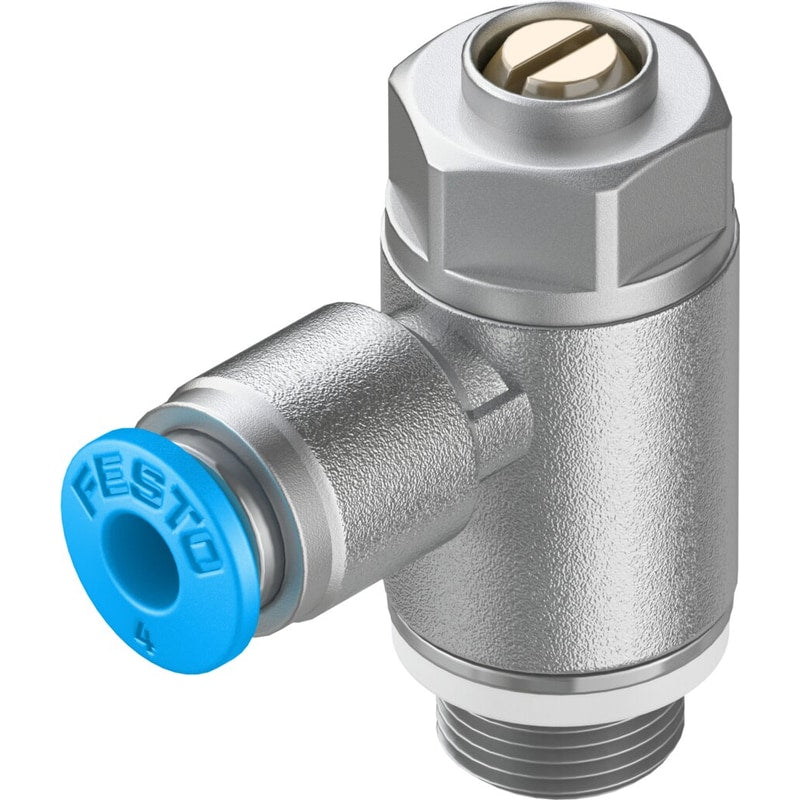

One-way flow control valve
GRLZ-1/8-QS-4-D
193157
GTIN 4052568043889
Vendor Festo
- Valve function
- Supply air flow control non-return function
- Standard nominal flow rate in flow control direction
- 160 l/min
- Pneumatic connection 1
- QS-4
- Adjusting element
- Slotted screw
Regular price
$26.59
Unit price
GRLZ-1/8-QS-4-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLZ-1/8-QS-4-D
Regular price
$26.59
Unit price
GRLZ-1/8-QS-4-D is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLZ-1/8-QS-4-D Part number: 193157 ★ Core product range For supply air flow control, with swivel joint.
| Valve function | one-way flow control function for supply air |
|---|---|
| connection 1 | 4 |
| connection 2 | G1/8 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 160 l/min |
| Standard nominal flow rate in non-return direction | 120 ... 190 l/min |
| Ambient temperature | '-10 ... 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 ... 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 300 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 260 ... 290 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Design | Elbow |
