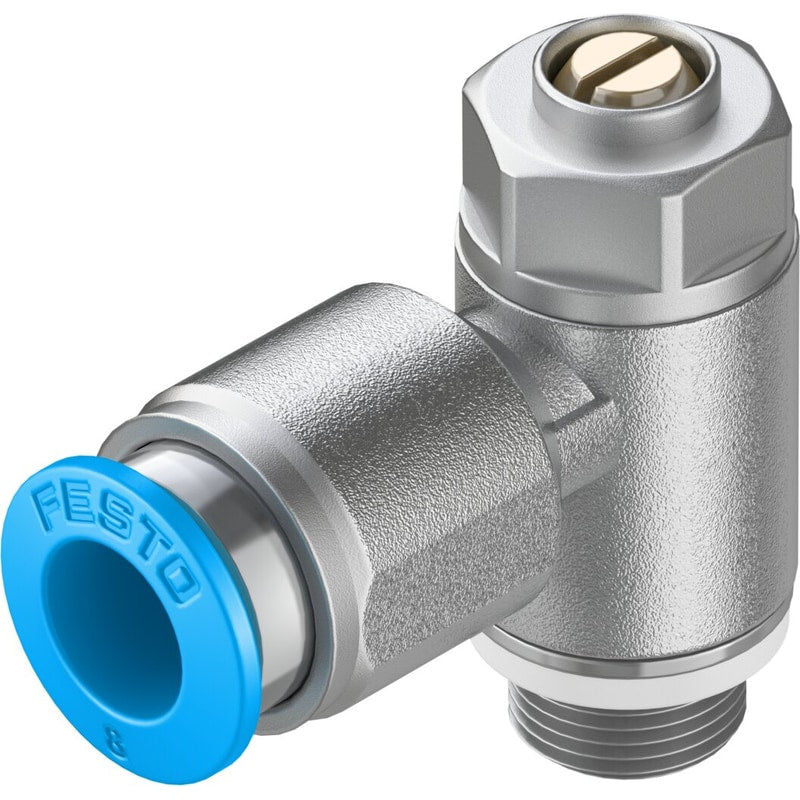

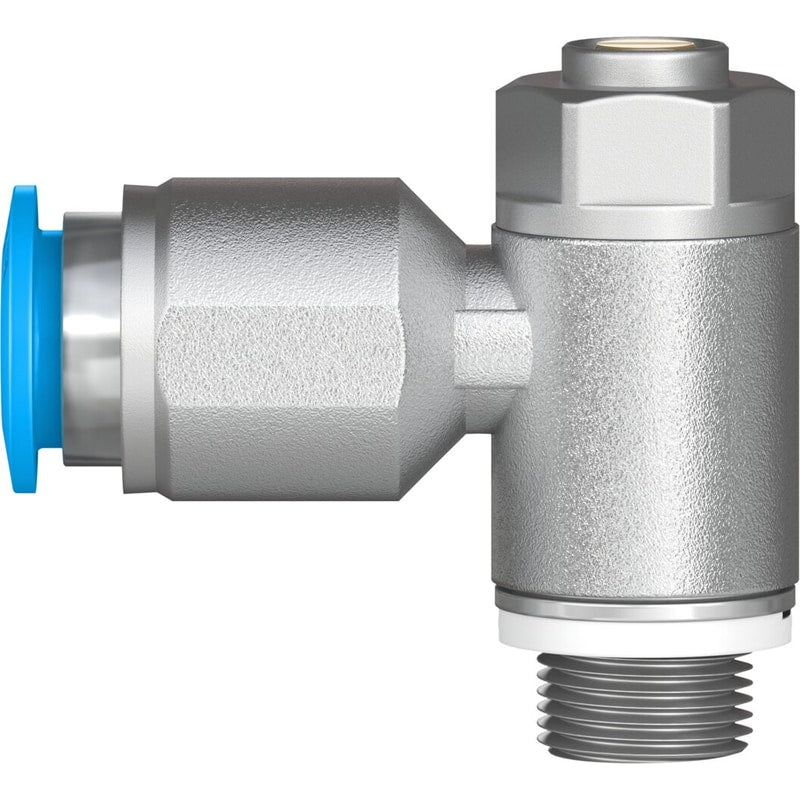

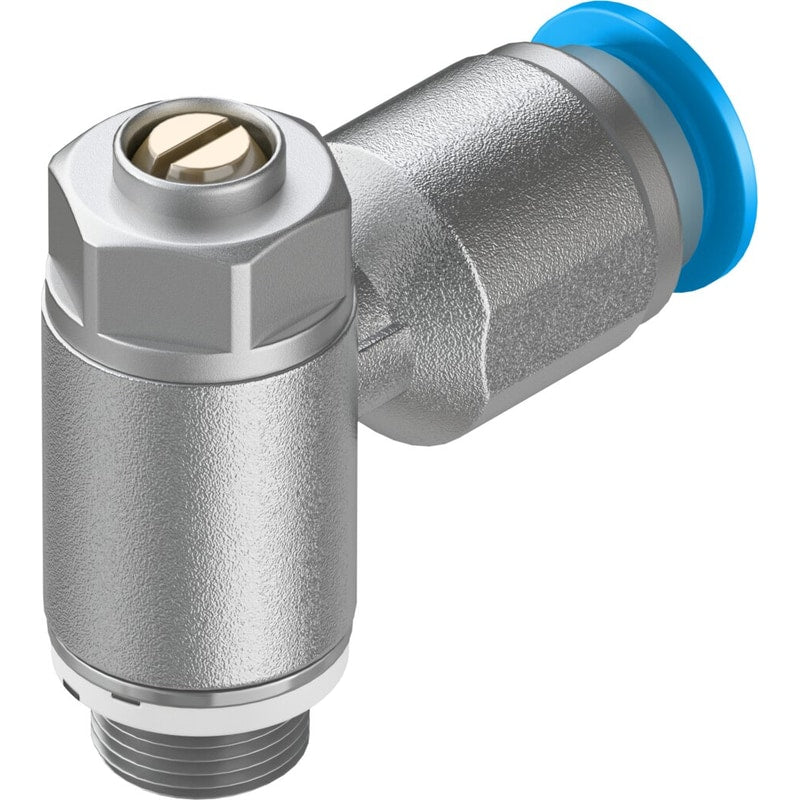

One-way flow control valve
GRLA-1/8-QS-8-D
193145
GTIN 4052568015053
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 215 l/min
- Pneumatic connection 1
- QS-8
- Adjusting element
- Slotted screw
Regular price
$26.10
Unit price
GRLA-1/8-QS-8-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-1/8-QS-8-D
Regular price
$26.10
Unit price
GRLA-1/8-QS-8-D is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLA-1/8-QS-8-D Part number: 193145 ★ Core product range
| Valve function | One-way flow control function for exhaust air |
|---|---|
| connection 1 | 8 |
| connection 2 | G1/8 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 215 l/min |
| Standard nominal flow rate in non-return direction | 175 ... 250 l/min |
| Ambient temperature | '-10 ... 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 ... 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 400 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 330 ... 410 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Design | Elbow |
