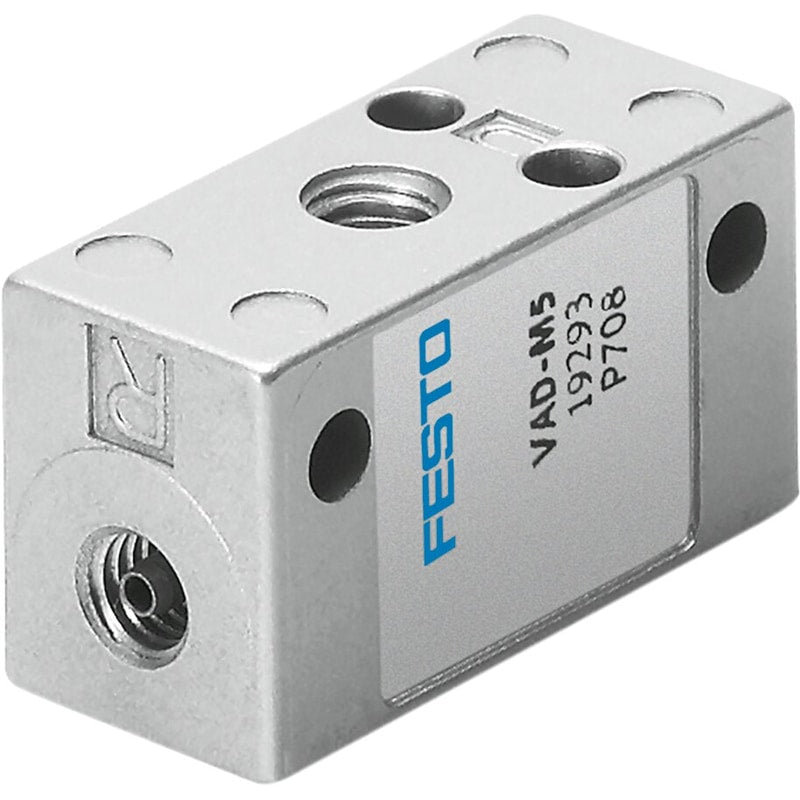

Vacuum generator
VAD-M5
19293
GTIN 4052568067267
Vendor Festo
Regular price
$103.47
Unit price
VAD-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAD-M5
Regular price
$103.47
Unit price
VAD-M5 is backordered and will ship as soon as it is back in stock.
vacuum generator VAD-M5 Part number: 19293 Classic Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Nominal size, Laval nozzle | 0.5 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Design structure | T-shaped |
| Operating pressure | 1.5 ... 10 bar |
| Max. vacuum | 0.8 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 80 °C |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 3 | M5 |
