Push-in fitting
QS-1/4-1/4-I-U-M (Pack of 10)
192809
GTIN 4052568325183
Vendor Festo
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 4.191 mm
Regular price
$2.74
Unit price
QS-1/4-1/4-I-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-1/4-1/4-I-U-M (Pack of 10)
Regular price
$2.74
Unit price
QS-1/4-1/4-I-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.

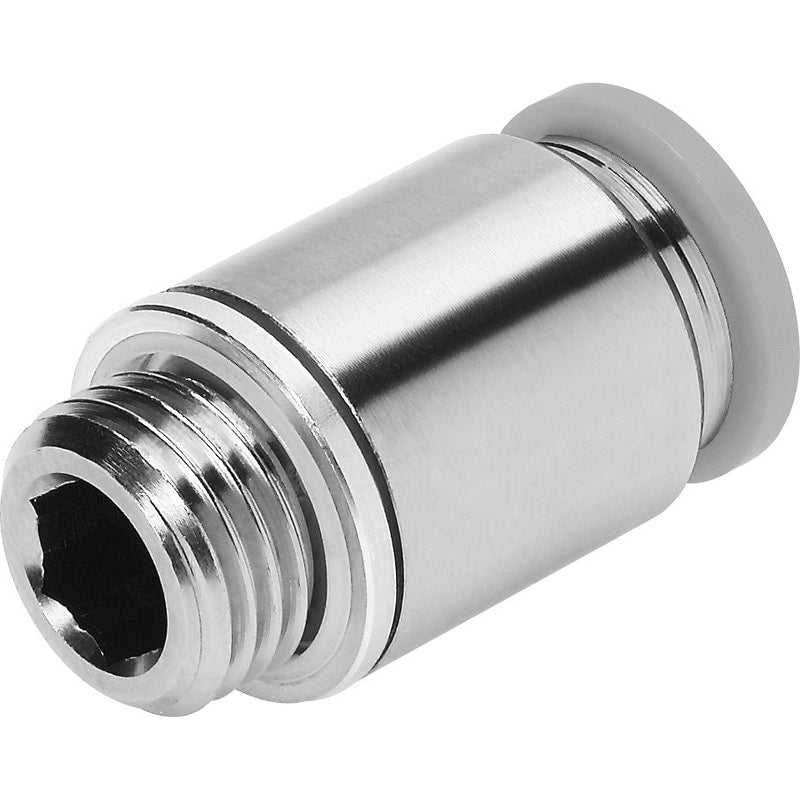

push-in fitting QS-1/4-1/4-I-U-M Part number: 192809 male thread with internal hexagon socket.
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 0.165 " |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.78 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Product weight | 0.423 oz |
| connection 1 | Male thread R1/4 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
| Material release ring | POM |
