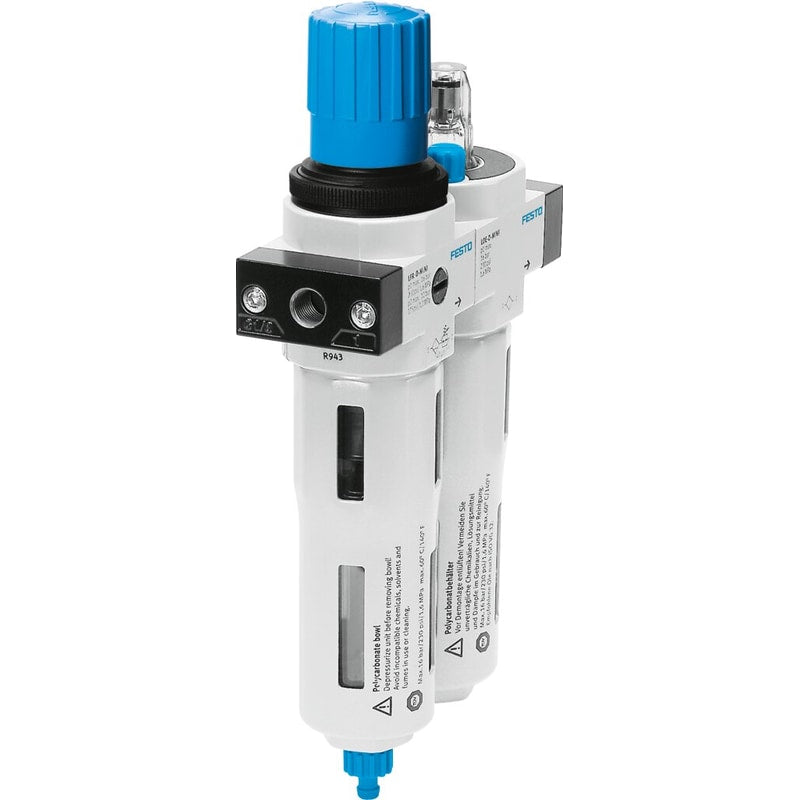

Service unit
FRC-3/8-D-7-O-MIDI
192634
GTIN 4052568152758
Vendor Festo
- Pneumatic connection 1
- G3/8
- Normal nominal flow rate (normalized to DIN 1343)
- 2000 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Grade of filtration
- 40 µm
Regular price
$380.25
Unit price
Service unit FRC-3/8-D-7-O-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRC-3/8-D-7-O-MIDI
Regular price
$380.25
Unit price
Service unit FRC-3/8-D-7-O-MIDI is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating |
| Design | Filter regulator without pressure gaugeProportional standard oil mist lubricator |
| Max. condensate volume | 43 ml |
| Grade of filtration | 40 µm |
| Bowl guard | Metal bowl guard |

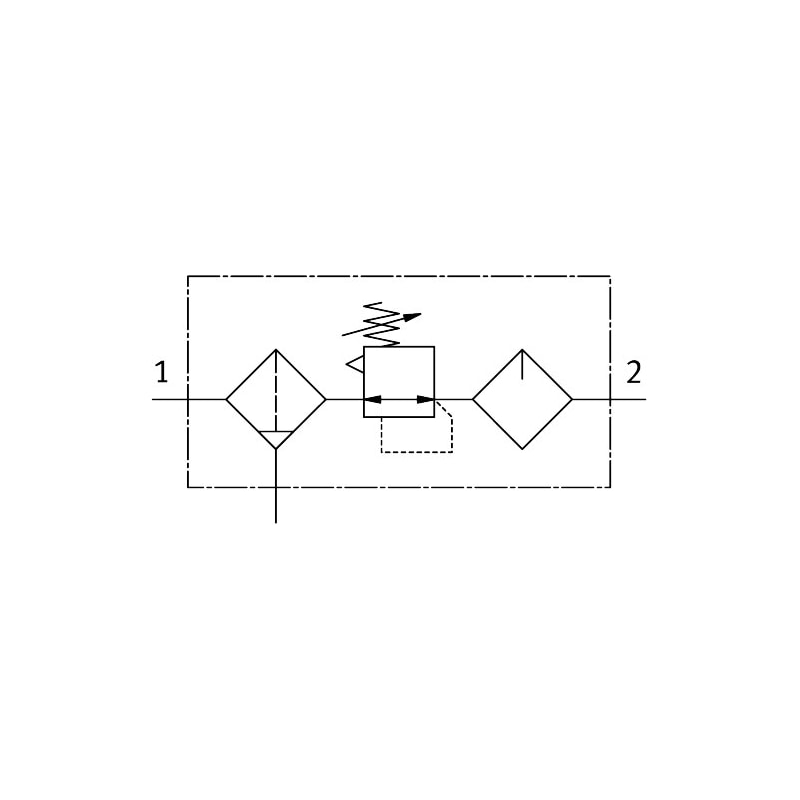

| Symbol | 991550 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 2000 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [7:8:-] |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 1440 g |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
