Filter regulator
LFR-1/8-D-5M-O-MINI-A
192620
GTIN 4052568152635
Vendor Festo
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 650 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$279.64
Unit price
Filter regulator LFR-1/8-D-5M-O-MINI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-1/8-D-5M-O-MINI-A
Regular price
$279.64
Unit price
Filter regulator LFR-1/8-D-5M-O-MINI-A is backordered and will ship as soon as it is back in stock.

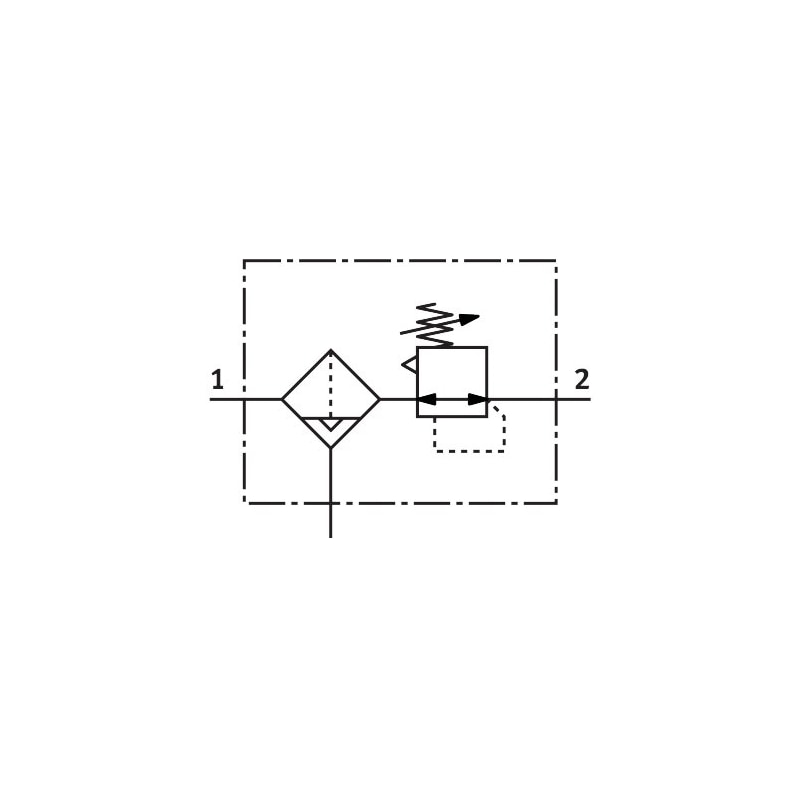

filter regulator LFR-1/8-D-5M-O-MINI-A Part number: 192620 Classic With metal bowl guard without pressure gauge, degree of filtration 5 µm. With automatic condensate drain. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Size | Mini |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator without pressure gauge |
| Max. condensate volume | 22 cm3 |
| Bowl guard | Metal bowl guard |
| Pressure gauge | Prepared for G1/8 |
| Operating pressure | 2 ... 12 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
