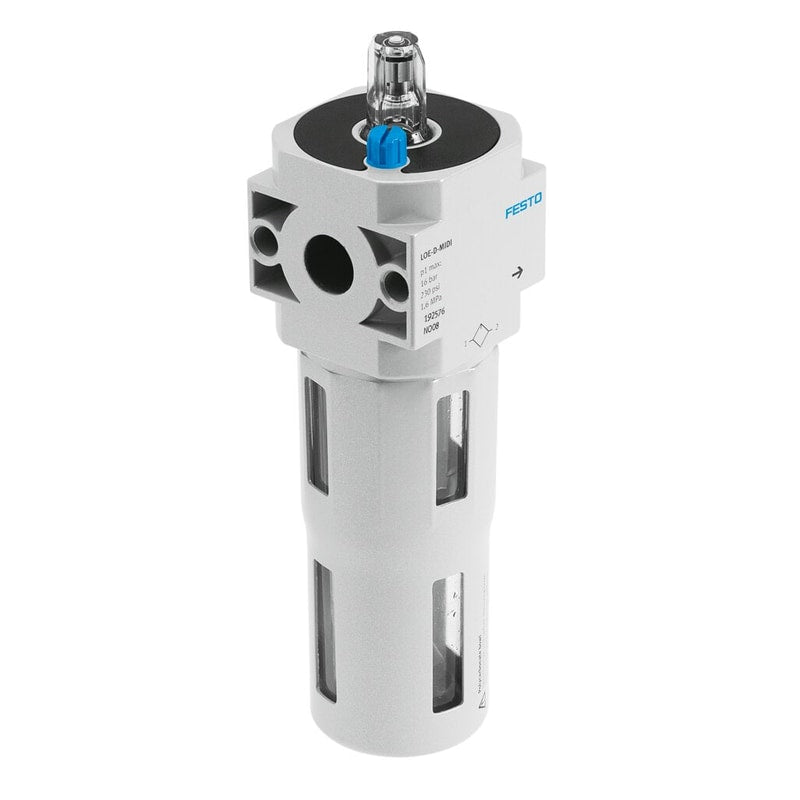

Air line lubricator
LOE-D-MIDI
192576
GTIN 4052568079543
Vendor Festo
- Operating pressure
- 0 bar - 16 bar
- Minimum flow rate for lubricator function
- 8 l/min
Regular price
$142.52
Unit price
Air line lubricator LOE-D-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LOE-D-MIDI
Regular price
$142.52
Unit price
Air line lubricator LOE-D-MIDI is backordered and will ship as soon as it is back in stock.
lubricator LOE-D-MIDI Part number: 192576 Classic Without threaded connection plates with FRB threaded pin, with metal bowl guard. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 110 cm3 |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 16 bar |
| Minimum flow rate for lubricator function | 8 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:4:-]Inert gases |
