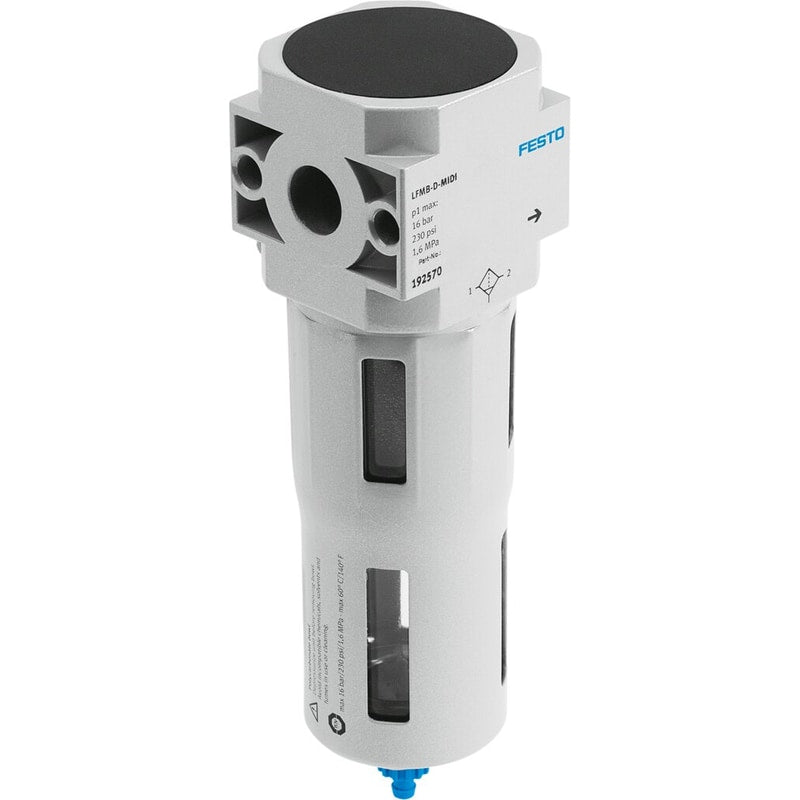

Fine filter
LFMB-D-MIDI
192570
GTIN 4052568152369
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Condensate drain
- Manually rotating
- Operating pressure
- 1 bar - 16 bar
- Grade of filtration
- 1 µm
Regular price
$259.33
Unit price
LFMB-D-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMB-D-MIDI
Regular price
$259.33
Unit price
LFMB-D-MIDI is backordered and will ship as soon as it is back in stock.
| Series | D |
|---|---|
| Size | Midi |
| Type code | LFMB |
| Design | Fiber filter |
| Grade of filtration | 1 µm |
| Condensate drain | Manually rotating |
| Symbol | 991519 |
| Operating pressure | 1 bar ... 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [5:7:3]Inert gas |
| Filter efficiency | 0.9999 |
| Max. condensate volume | 43 ml |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 1.5 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Storage temperature | -10 °C ... 60 °C |
| Residual oil content | 0.5 mg/m³ |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Note on materials | RoHS-compliantFree of copper and PTFE |
