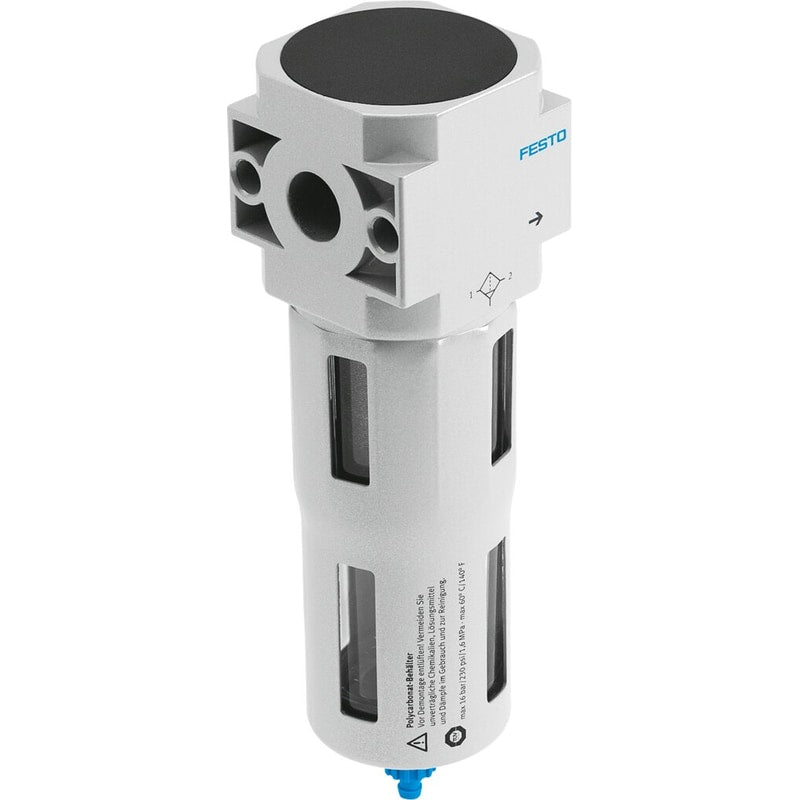

Micro filter
LFMA-D-MAXI-A
192568
GTIN 4052568152352
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 2 bar - 12 bar
- Grade of filtration
- 0.01 µm
Regular price
$666.38
Unit price
LFMA-D-MAXI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMA-D-MAXI-A
Regular price
$666.38
Unit price
LFMA-D-MAXI-A is backordered and will ship as soon as it is back in stock.
| Series | D |
|---|---|
| Size | Maxi |
| Type code | LFMA |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Fully automatic |
| Symbol | 991520 |
| Operating pressure | 2 bar ... 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [1:7:2] |
| Filter efficiency | 0.999999 |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 1.5 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Type of mounting | With accessoriesLine installationOptionally: |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Housing material | Die-cast zinc |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
