Filter

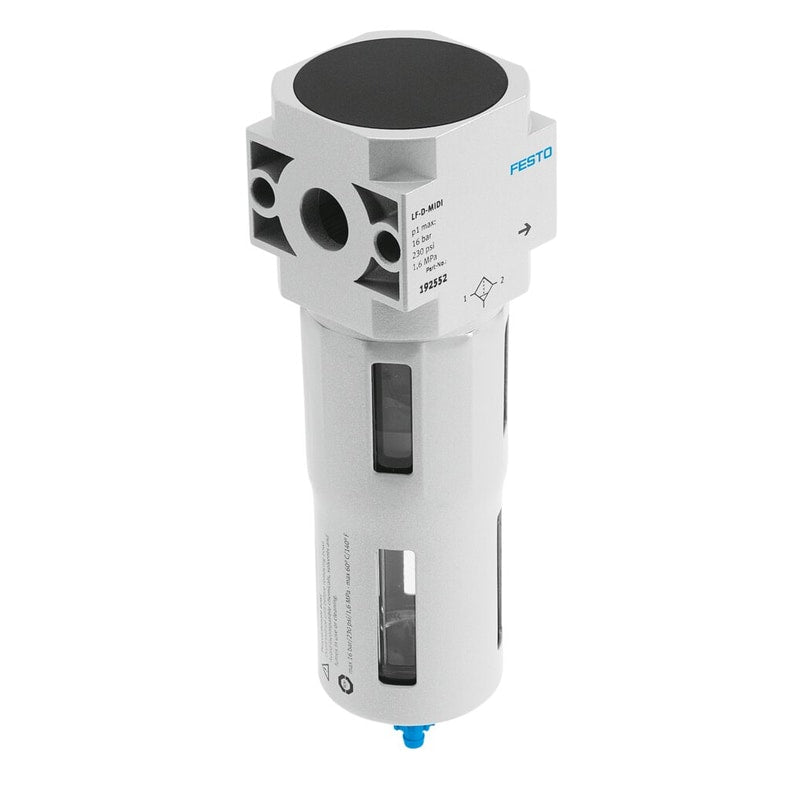

LF-D-5M-MIDI
192558
GTIN 4052568079529
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 0 bar - 16 bar
- Grade of filtration
- 5 µm
Regular price
$144.95
Unit price
LF-D-5M-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LF-D-5M-MIDI
Regular price
$144.95
Unit price
LF-D-5M-MIDI is backordered and will ship as soon as it is back in stock.
filter LF-D-5M-MIDI Part number: 192558 Classic Without threaded connection plates with FRB threaded pin. Degree of filtration: 5 µm, with bowl guard and manual condensate drain. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 43 cm3 |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 16 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases |
