Pressure switch
PEV-1/4-B-M12
192488
GTIN 4052568007966
Vendor Festo
Regular price
$223.42
Unit price
PEV-1/4-B-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEV-1/4-B-M12
Regular price
$223.42
Unit price
PEV-1/4-B-M12 is backordered and will ship as soon as it is back in stock.

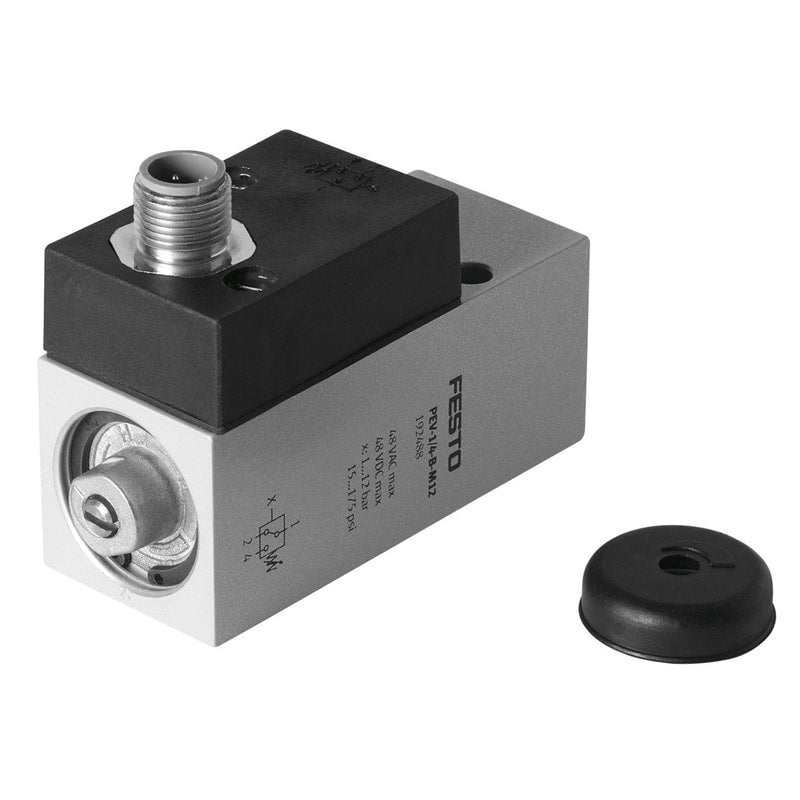

pressure switch PEV-1/4-B-M12 Part number: 192488
| Conforms to standard | EN 60947-5-1 |
|---|---|
| Authorisation | CCCc UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | 1 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 80 °C |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
