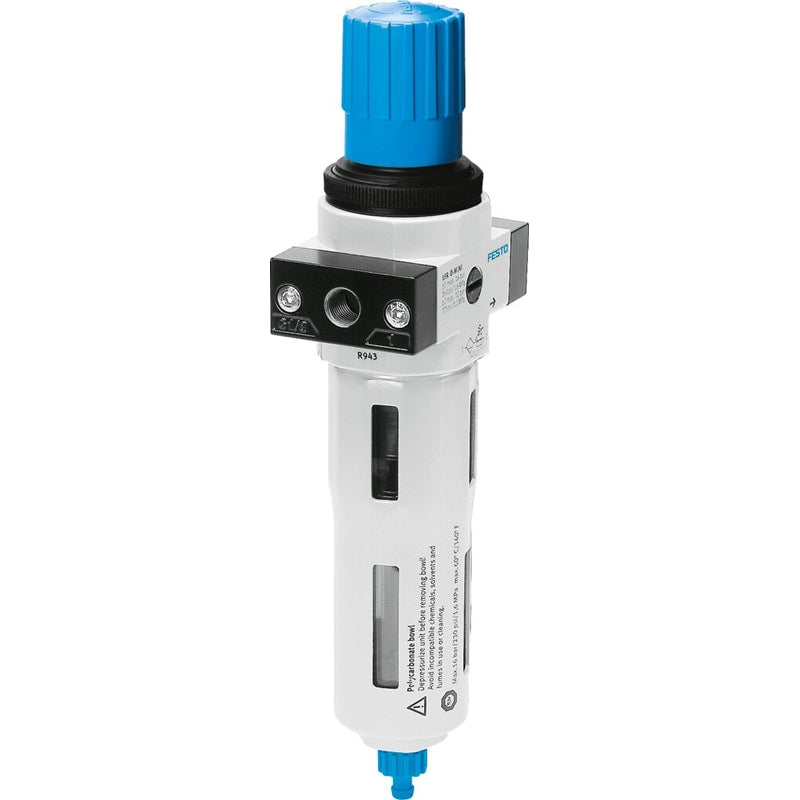

Filter regulator
LFR-1-D-7-O-DI-MAXI-A
192403
GTIN 4052568151393
Vendor Festo
Regular price
$444.16
Unit price
LFR-1-D-7-O-DI-MAXI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-1-D-7-O-DI-MAXI-A
Regular price
$444.16
Unit price
LFR-1-D-7-O-DI-MAXI-A is backordered and will ship as soon as it is back in stock.
| Size | Maxi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40µm |
| Condensate drain | Fully automatic |
| Structural design | Filter regulator without pressure gauge |
| Max. condensate volume | 43ml |
| Bowl guard | Metal bowl guard |
| Symbol | 00991588 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 2bar |
| Pressure regulation range | 0.5bar |
| Max. pressure hysteresis | 0.4bar |
| Standard nominal flow rate | 7800l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] |
| Temperature of medium | 5°C |
| Ambient temperature | 5°C |
| Product weight | 1600g |
| Type of mounting | Line installation |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
