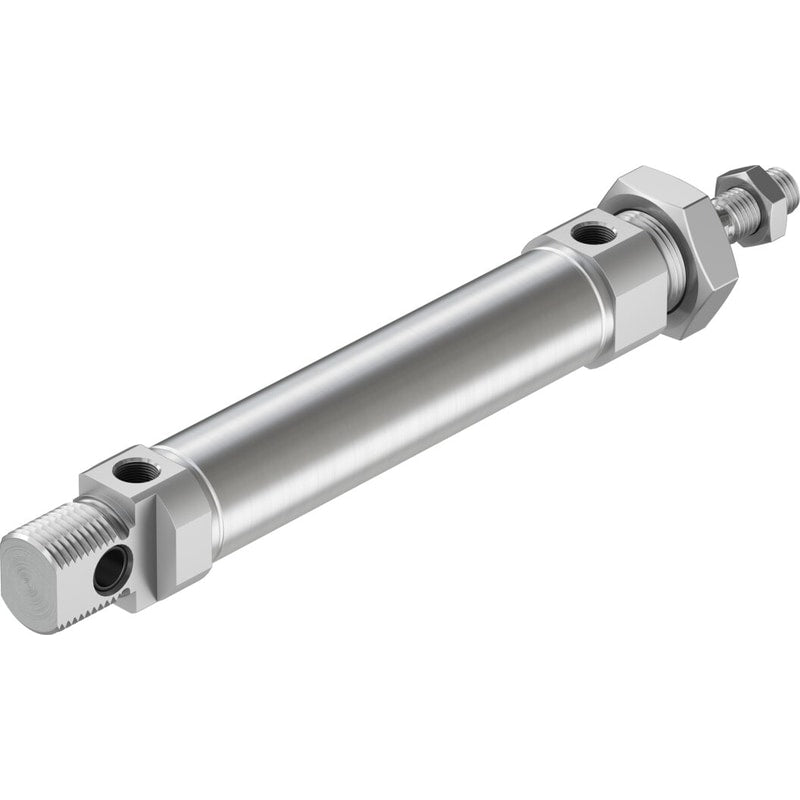

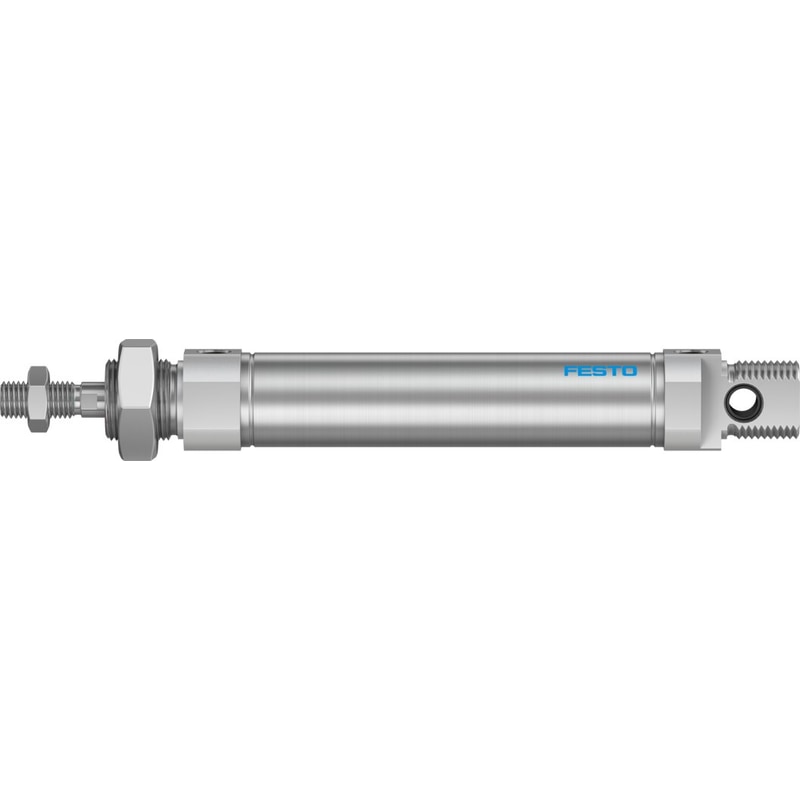

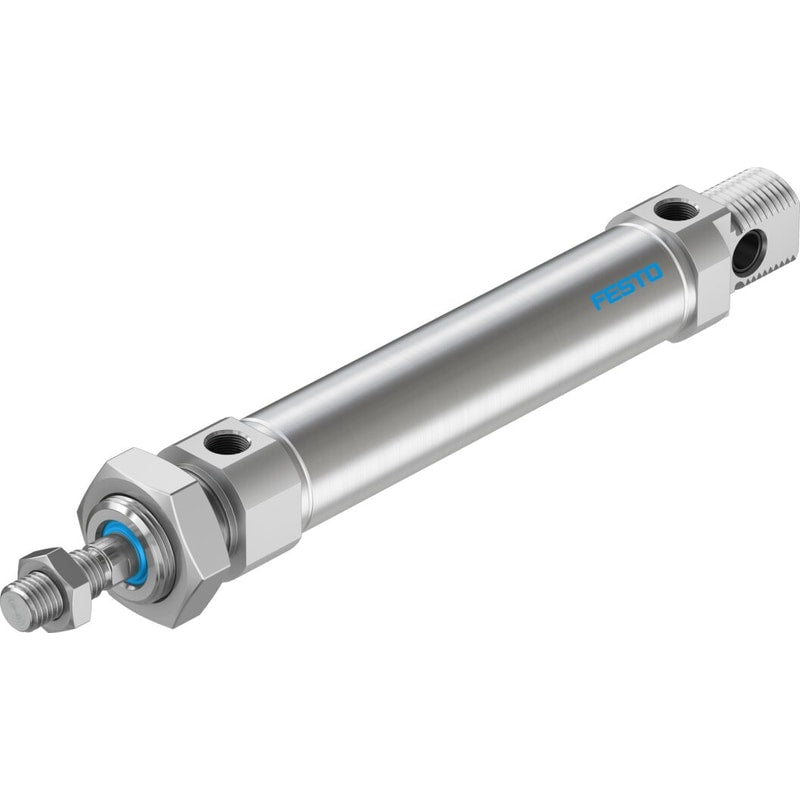

ISO cylinder
DSNU-25-80-P-A
19222
GTIN 4052568003265
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 25 mm
- Theoretical force at 6 bar, advancing
- 294.5 N
- Stroke
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$73.75
Unit price
DSNU-25-80-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-25-80-P-A
Regular price
$73.75
Unit price
DSNU-25-80-P-A is backordered and will ship as soon as it is back in stock.
ISO cylinder DSNU-25-80-P-A Part number: 19222 ★ Core product range Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With elastic cushioning rings in the end positions.
| Stroke | 80 mm |
|---|---|
| Piston diameter | 25 mm |
| Piston rod thread | M10x1,25 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | CETOP RP 52 PISO 6432 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
