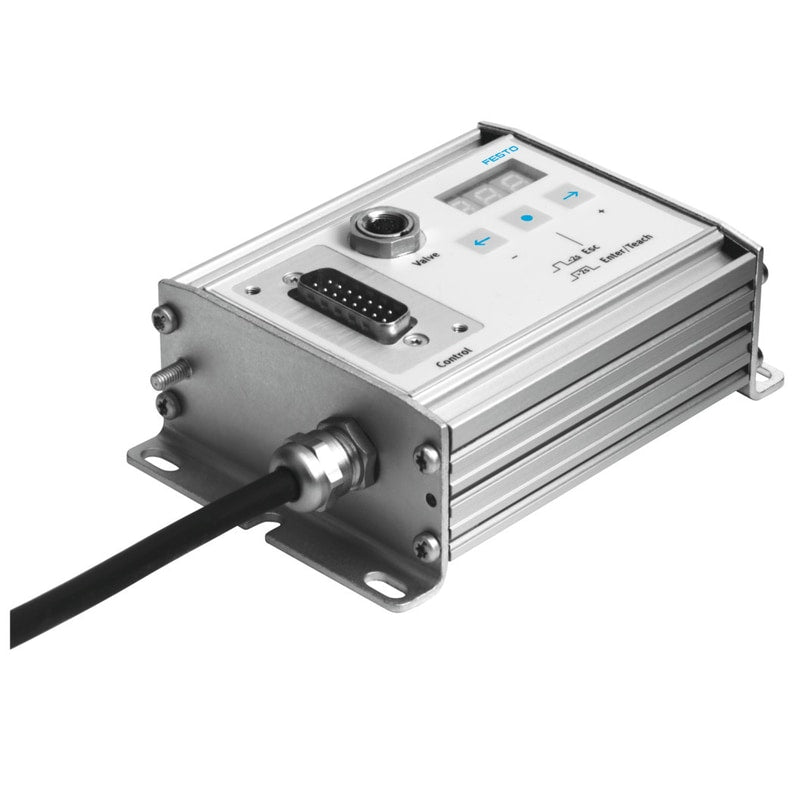

End position controller
SPC11-POT-LWG
192217
GTIN 4052568150860
Vendor Festo
Regular price
$1,039.18
Unit price
SPC11-POT-LWG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPC11-POT-LWG
Regular price
$1,039.18
Unit price
SPC11-POT-LWG is backordered and will ship as soon as it is back in stock.
end-position controller SPC11-POT-LWG Part number: 192217 for type DNC/DSMI drives. Up to two freely selectable intermediate positions are possible without fixed limit stop.
| Data backup | Flash memory |
|---|---|
| Control signals | Input, remote/teach-in/left/rightInput, position 1/2/3/4Output, error-readyOutput, position 1/2/3/4 |
| Display | 3-placeColour: redSeven-segment display |
| Control elements | 3 keysMembrane keypad |
| Fuse protection, output | ElectronicMax. tripping current: 500 mAVia sum of all outputs |
| Number of digital outputs | 5 |
| Number of digital inputs | 8 |
| Type of outputs | Per IEC 61131-2Positive logic (PNP)No electrical isolation |
| Type of inputs | Per IEC 61131-2Positive logic (PNP)No electrical isolation |
| Debouncing time, inputs | 20 ms |
| Max. current consumption with proportional valve | 1.1 A |
| Max. current consumption without proportional valve | 70 mA |
| Nominal operating voltage DC | 24 V |
