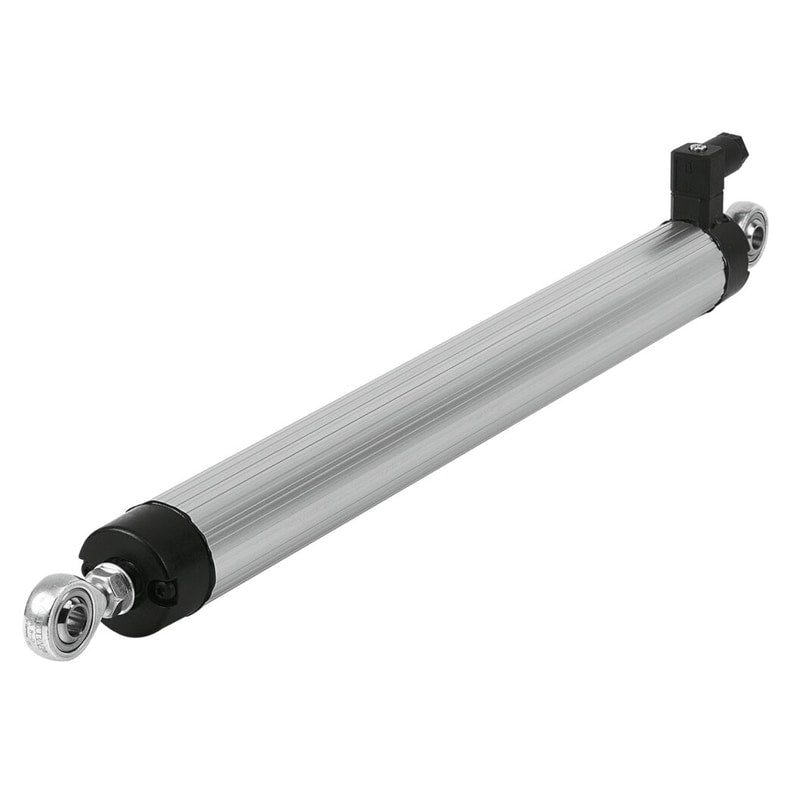

Displacement encoder
MLO-POT-150-LWG
192214
GTIN 4052568150846
Vendor Festo
- Stroke
- 150 mm
- Measuring principle of linear potentiometer
- Analog
- Output signal
- Analog
- Displacement resolution
- 0.01 mm
- Electrical connection
- Plug - Rectangular design
Regular price
$1,188.49
Unit price
MLO-POT-150-LWG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MLO-POT-150-LWG
Regular price
$1,188.49
Unit price
MLO-POT-150-LWG is backordered and will ship as soon as it is back in stock.
displacement encoder MLO-POT-150-LWG Part number: 192214
| CE mark (see declaration of conformity) | to EU directive for EMC |
|---|---|
| Measuring method: displacement encoder | Analogue |
| Ambient temperature | '-30 ... 100 °C |
| Recommended wiper current | < 1 µA |
| Max. intermittent wiper current | 10 mA |
| Max. travel speed | 5 m/s |
| Max. travel acceleration | 200 m/s2 |
| Travel resolution | 0.01 mm |
| Independent linearity | 0,08 % |
| Temperature coefficient | 5 ppm/K |
| Stroke | 150 mm |
| Output signal | Analogue |
| Connection resistance | 5 kOhm |
