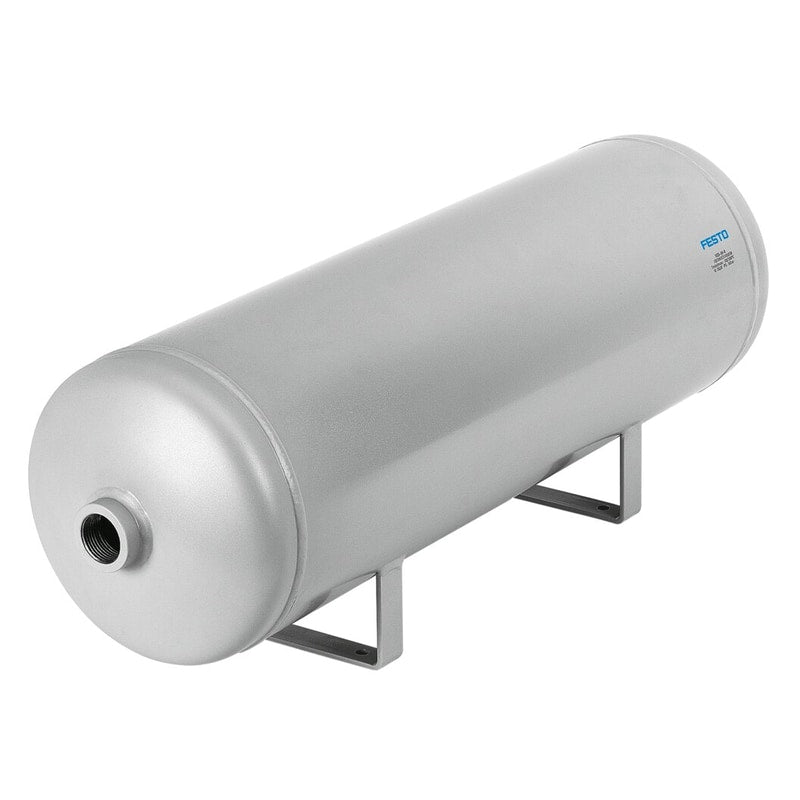

Air reservoir
VZS-20-B
192161
GTIN 4052568150822
Vendor Festo
- Volume
- 20 l
- Air reservoir material
- Steel, powder-coated
- Conforms to standard
- EN 286-1
- Condensate drain connection
- G3/8
Regular price
$737.74
Unit price
VZS-20-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZS-20-B
Regular price
$737.74
Unit price
VZS-20-B is backordered and will ship as soon as it is back in stock.
air reservoir VZS-20-B Part number: 192161
| Volume | 20 l |
|---|---|
| Assembly position | Downward condensate drain |
| Conforms to standard | EN 286-1 |
| Operating pressure | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-]Nitrogen |
| CE mark (see declaration of conformity) | to EU directive pressure reservoirs |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Medium temperature | '-10 ... 100 °C |
| Ambient temperature | '-10 ... 100 °C |
| Max. tightening torque, connecting thread | 130 Nm |
| Max. tightening torque, condensate drain | 27 Nm |
| Product weight | 9,000 g |
| Mounting type | with through hole |
