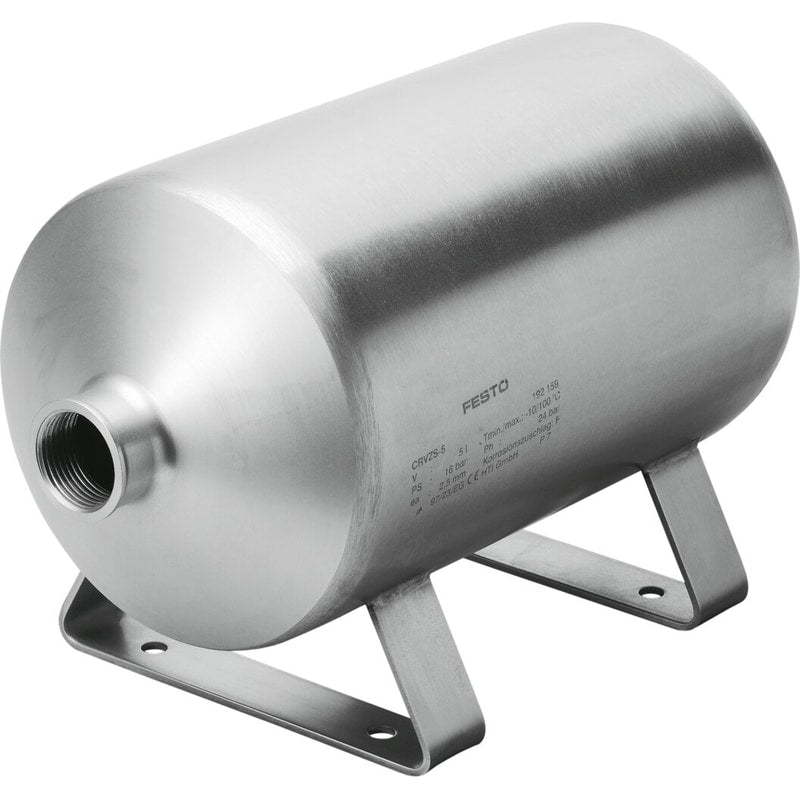

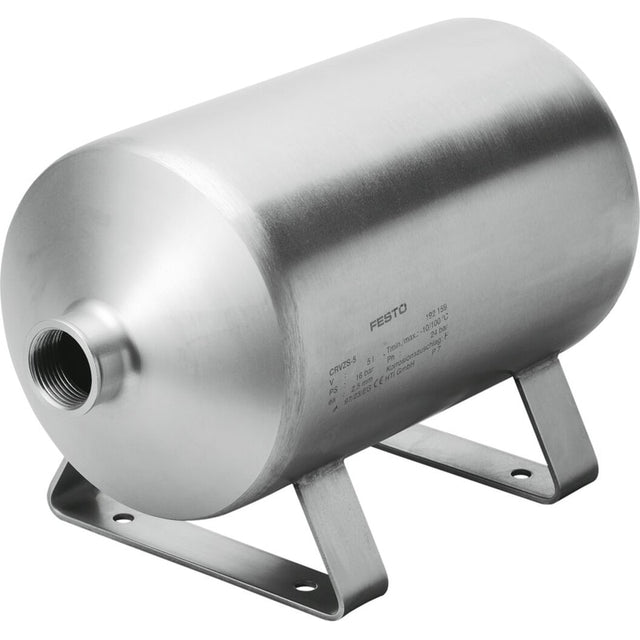

Air reservoir
CRVZS-5
192159
GTIN 4052568014919
Vendor Festo
- Volume
- 5 l
- Air reservoir material
- High-alloy stainless steel
- Conforms to standard
- AD 2000
- Condensate drain connection
- G3/8
Regular price
$482.56
Unit price
CRVZS-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRVZS-5
Regular price
$482.56
Unit price
CRVZS-5 is backordered and will ship as soon as it is back in stock.
air reservoir CRVZS-5 Part number: 192159
| Volume | 5 l |
|---|---|
| Assembly position | Downward condensate drain |
| Conforms to standard | AD 2000 reference sheet |
| Operating pressure | '-0.95 ... 16 bar |
| Certificate issuing department | CRN0H15669.5C |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-]Nitrogen |
| CE mark (see declaration of conformity) | to EU directive pressure devices |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Food-safe | See Supplementary material information |
| Medium temperature | '-10 ... 100 °C |
| Ambient temperature | '-10 ... 100 °C |
| Authorisation | CRNTÜV |
| Max. tightening torque, connecting thread | 130 Nm |
