Proximity sensor
SMTSO-8E-PS-M12-LED-24
191986
GTIN 4052568150693
Vendor Festo
Regular price
$257.42
Unit price
SMTSO-8E-PS-M12-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMTSO-8E-PS-M12-LED-24
Regular price
$257.42
Unit price
SMTSO-8E-PS-M12-LED-24 is backordered and will ship as soon as it is back in stock.

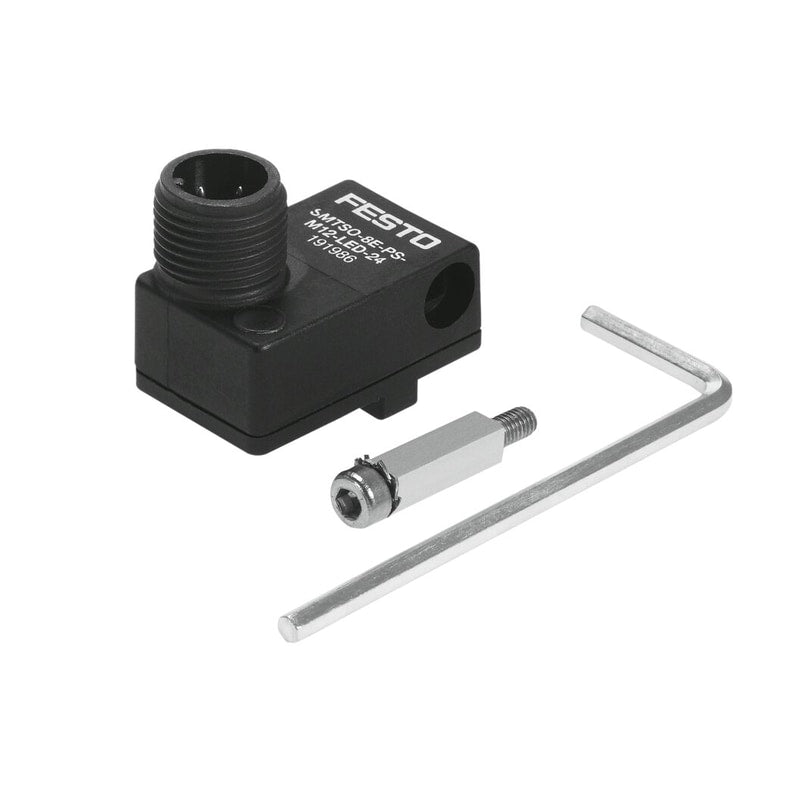

proximity sensor SMTSO-8E-PS-M12-LED-24 Part number: 191986 Electric, contactless, PNP, for drives with T-slot, without mounting kit, with M12 plug, welding field resistant design. Separate mounting component SMB-8E required (part no. 178230)
| Design | for T-slot |
|---|---|
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Special characteristics | Welding field immuneResistant to welding spatter |
| Materials note | Free of copper and PTFE |
| Measuring principle | Magnetic inductive |
| Ambient temperature | '-25 ... 70 °C |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Reproducibility of switching value | '+/- 0,1 mm |
| Switch-on time | 38 ms |
| Switch-off time | 20 ms |
| Max. output current | 200 mA |
