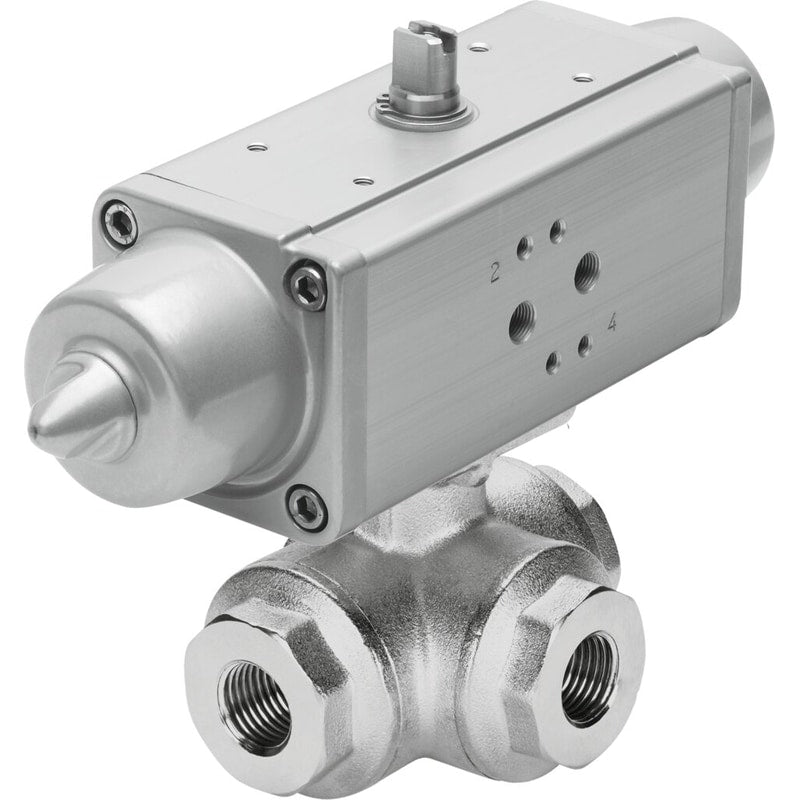

Ball valve actuator unit
VZBA-11/4"-GGG-63-32T-F0405-V4V4T-PS53-R-90-4-C
1915749
GTIN 4052568249816
Vendor Festo
- Structural design
- 3-way ball valve - Drilled T hole
- Fitting connection
- Rp1 1/4
- Actuation type
- Pneumatic
Regular price
$1,113.49
Unit price
VZBA-11/4"-GGG-63-32T-F0405-V4V4T-PS53-R-90-4-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBA-11/4"-GGG-63-32T-F0405-V4V4T-PS53-R-90-4-C
Regular price
$1,113.49
Unit price
Regular price
$1,113.49
Unit price
VZBA-11/4"-GGG-63-32T-F0405-V4V4T-PS53-R-90-4-C is backordered and will ship as soon as it is back in stock.
The ball valve actuator unit VZBC combines a compact a flanged ball valve with a double- or single-acting quarter turn actuator. Also for use in zones 1, 21, 2, 222.
| Type code | VZBC |
|---|---|
| Design | Quarter turn actuator2-way ball valve |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Ring housing with threaded flange |
| Switching position indication | Slot direction = flow direction |
| Nominal width DN | 50 |
| Operating pressure | 6 bar ... 8.4 bar |
| Nominal pressure of fitting PN | 40 |
| Symbol | 00992011 |
| Medium | Inert gasNeutral liquidsWater – no water vaporCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 200 °C |
| Ambient temperature | -10 °C ... 80 °C |
| Flow rate Kv | 275 m³/h |
| Max. surface temperature of assembly | TX |
| Explosion group of assembly | IIC, IIIC |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFEPTFE-reinforced |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 11800 g |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX) |
