Air solenoid valve
JMVH-5-1/4-S-B
19137
GTIN 4052568113223
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$546.87
Unit price
JMVH-5-1/4-S-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMVH-5-1/4-S-B
Regular price
$546.87
Unit price
JMVH-5-1/4-S-B is backordered and will ship as soon as it is back in stock.

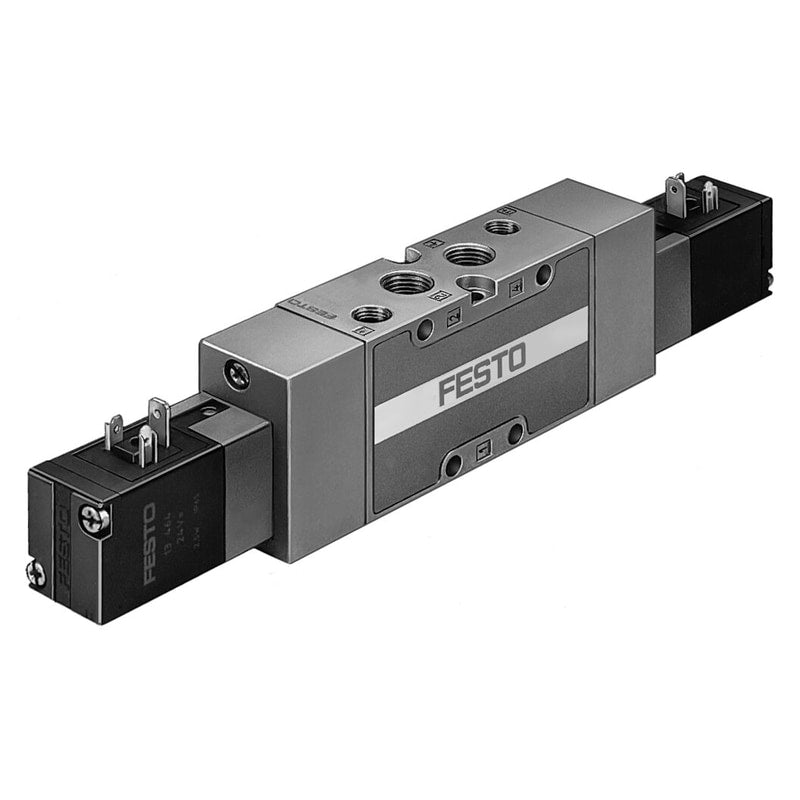

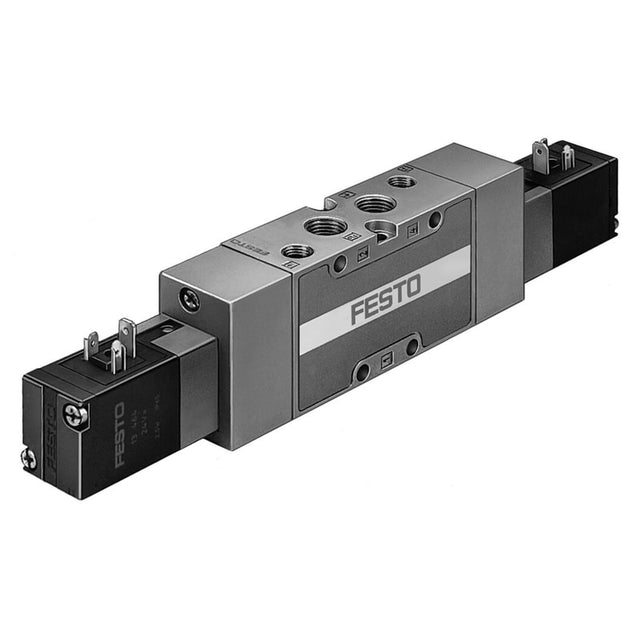

solenoid valve JMVH-5-1/4-S-B Part number: 19137 With solenoid coils and manual override, without plug sockets.

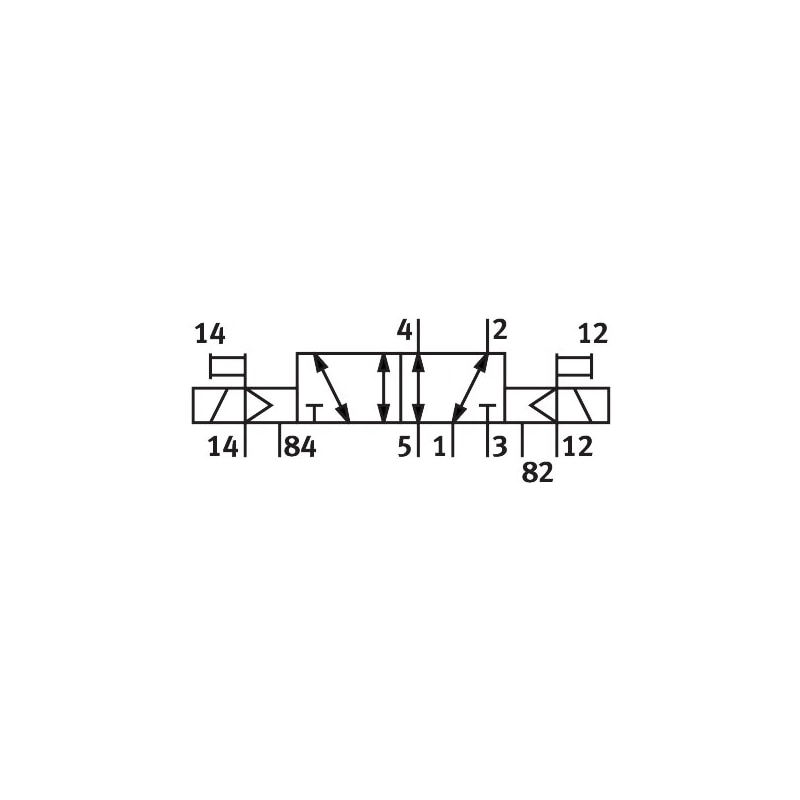

| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1,600 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Nominal size | 10 mm |
| Grid dimension | 33 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | Pushing |
| Type of piloting | Piloted |
