Bus node
CPX-FB36
1912451
GTIN 4052568249335
Vendor Festo
Regular price
$976.22
Unit price
CPX-FB36 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-FB36
Regular price
$976.22
Unit price
CPX-FB36 is backordered and will ship as soon as it is back in stock.

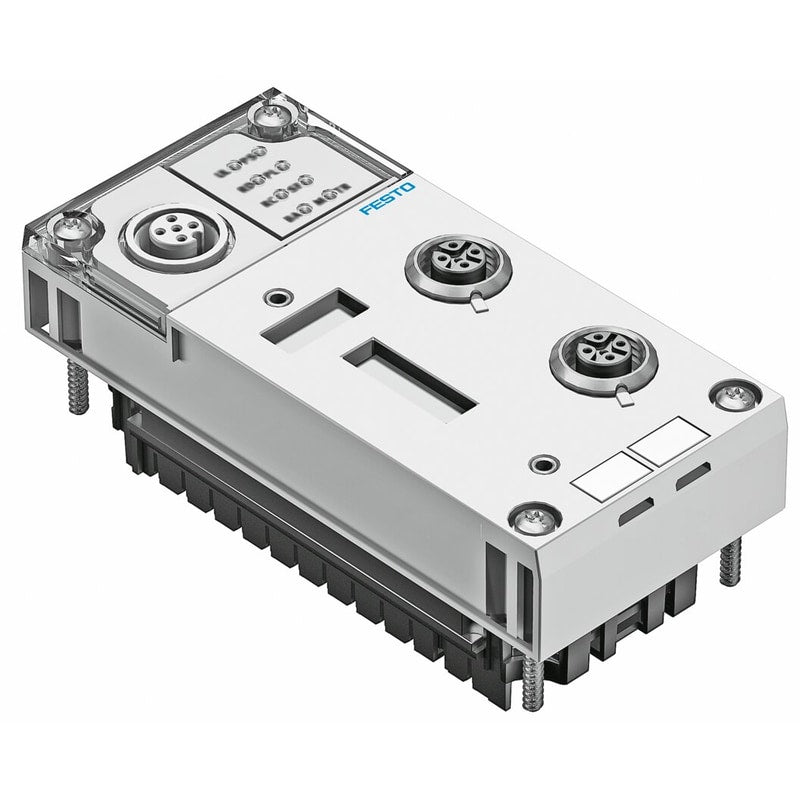

bus node CPX-FB36 Part number: 1912451 for modular electrical terminal CPX.
| Dimensions W x L x H | (including interlinking block)50 mm x 107 mm x 50 mm |
|---|---|
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Device-specific diagnostics | Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory |
| Configuration support | EDS fileL5K export with CPX-FMT |
| Parameters configuring | '- Diagnostic behaviour- Failsafe response- Forcing of channels- Idle mode characteristics- Signal setup- System parameter |
| Additional functions | '- EtherNet/IP Quickconnect- Ringtopologie (DLR)- Acyclic data access via "Explicit Message"Acyclic data access via Ethernet- IP addressing via DHCP, DIL switch or operator unitIntegrated SwitchChannel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process data |
| Control elements | DIL switches |
| Baud rate | 10/100 Mbit/s |
| Operating voltage range DC | 18 ... 30 V |
| Intrinsic current consumption at operating voltage | Typ. 100 mA |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Storage temperature | '-20 ... 70 °C |
