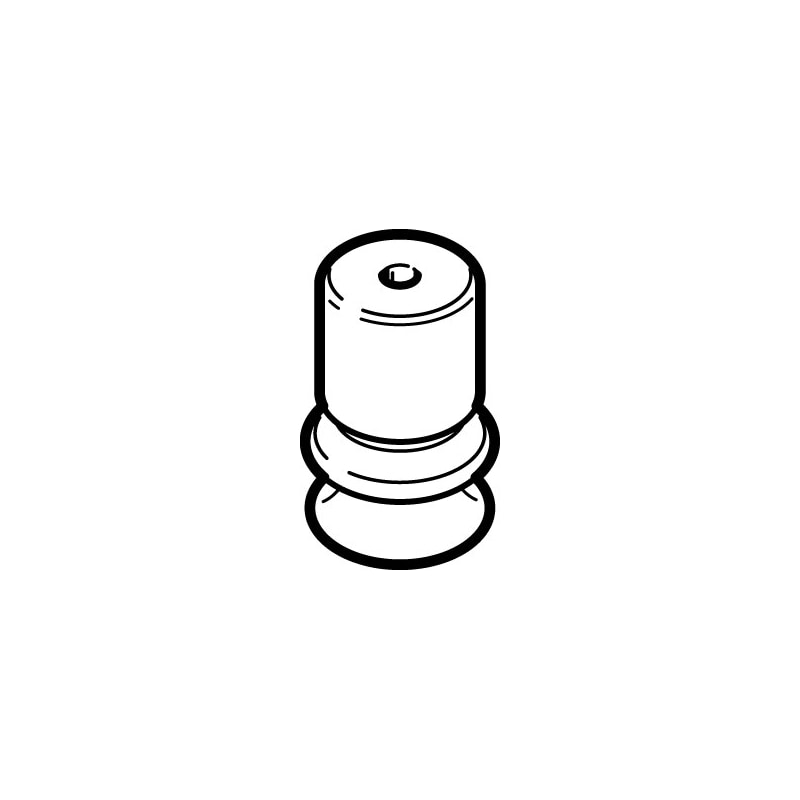

Vacuum cup without connector
ESV-20-BU
191055
GTIN 4052568043490
Vendor Festo
- Suction cup diameter
- 20 mm
- Suction cup shape
- Round bellows, 1.5 convolutions
- Suction cup material
- PUR
Regular price
$22.91
Unit price
ESV-20-BU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESV-20-BU
Regular price
$22.91
Unit price
ESV-20-BU is backordered and will ship as soon as it is back in stock.
vacuum suction cup ESV-20-BU Part number: 191055 Wearing part, easily replaceable
| Suction cup height compensator | 6 mm |
|---|---|
| Min. workpiece radius | 40 mm |
| suction cup diameter | 20 mm |
| suction cup volume | 1.6 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Suction cup shape | Round, bellows 1.5 conv |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-20 ... 60 °C |
| Retention force at nominal operating pressure | 12.9 N |
| Product weight | 1.9 g |
| Colour | blue |
