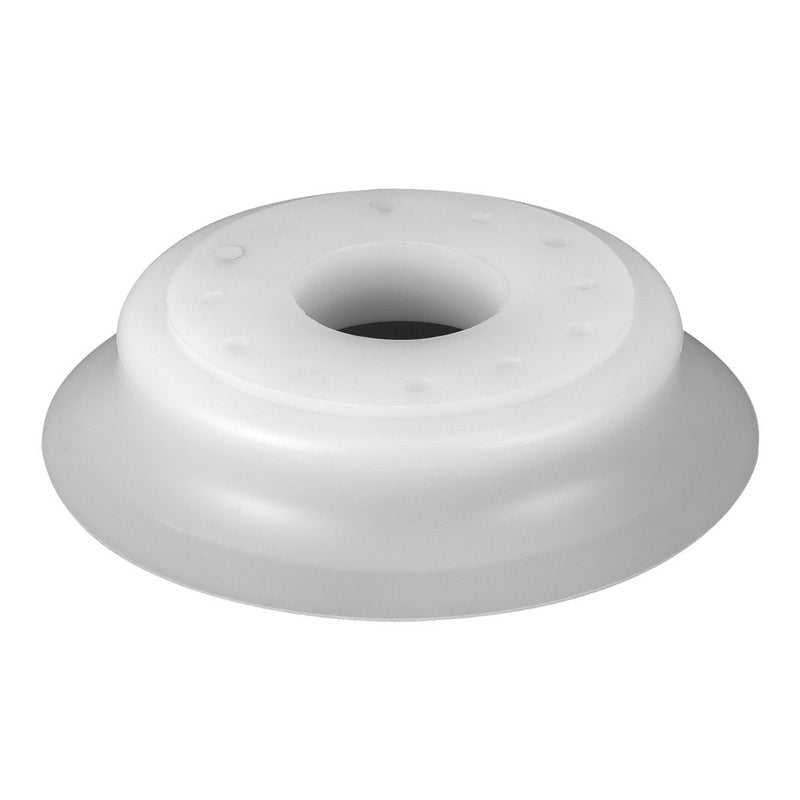

Vacuum cup without connector
ESV-100-ES
191049
GTIN 4052568079093
Vendor Festo
- Suction cup diameter
- 100 mm
- Suction cup shape
- Round, extra-deep
- Suction cup material
- VMQ (silicone)
Regular price
$93.37
Unit price
ESV-100-ES is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESV-100-ES
Regular price
$93.37
Unit price
ESV-100-ES is backordered and will ship as soon as it is back in stock.
vacuum suction cup ESV-100-ES Part number: 191049 Wearing part, easily replaceable
| Min. workpiece radius | 200 mm |
|---|---|
| suction cup diameter | 100 mm |
| suction cup volume | 79.812 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Suction cup shape | Round, extra deep |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-30 ... 180 °C |
| Retention force at nominal operating pressure | 440.8 N |
| Product weight | 65 g |
| Colour | transparent |
| Shore hardness | 50 +/- 5 |
