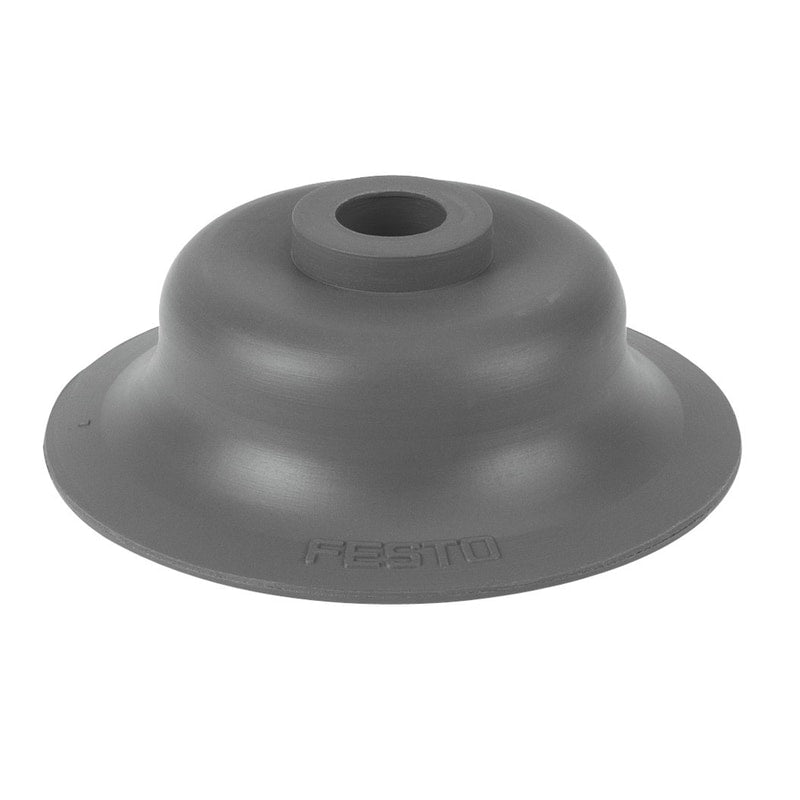

Vacuum cup without connector
ESV-30-SF
190987
GTIN 4052568043162
Vendor Festo
- Suction cup diameter
- 30 mm
- Suction cup shape
- Round, flat
- Suction cup material
- FPM
Regular price
$43.14
Unit price
ESV-30-SF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESV-30-SF
Regular price
$43.14
Unit price
ESV-30-SF is backordered and will ship as soon as it is back in stock.
vacuum suction cup ESV-30-SF Part number: 190987 Wearing part, easily replaceable
| Min. workpiece radius | 110 mm |
|---|---|
| suction cup diameter | 30 mm |
| suction cup volume | 0.867 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Suction cup shape | round flat |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-10 ... 200 °C |
| Retention force at nominal operating pressure | 40.8 N |
| Product weight | 2.7 g |
| Colour | Grey |
| Shore hardness | 60 +/- 5 |
