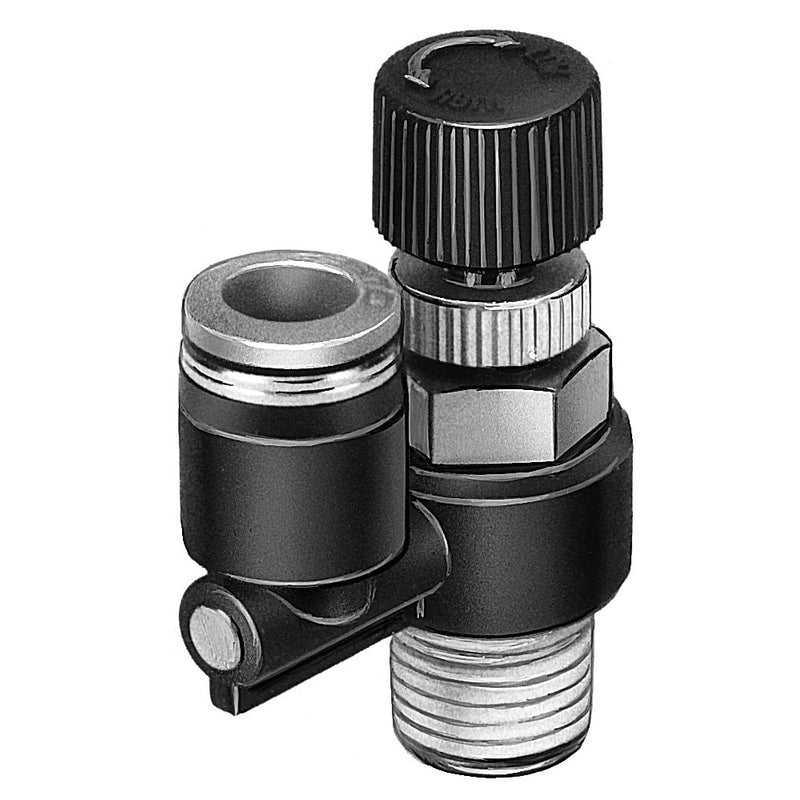

Differential pressure regulator
LRL-3/8-NPT-QS-1/2-U
190901
GTIN 4052568324674
Vendor Festo
Regular price
$89.65
Unit price
LRL-3/8-NPT-QS-1/2-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRL-3/8-NPT-QS-1/2-U
Regular price
$89.65
Unit price
LRL-3/8-NPT-QS-1/2-U is backordered and will ship as soon as it is back in stock.
| Controller function | Differential pressure constant |
|---|---|
| Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | QS-1/2 |
| Type of mounting | Screw-in |
| Inlet pressure 1 MPa | 0MPa |
| Inlet pressure 1 | 0bar |
| Inlet pressure 1 psi | 0psi |
| Ambient temperature | 0°C |
| Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Mounting position | Any |
| Symbol | 00991535 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 76g |
| Material of screwed trunnion | Brass |
| Note on materials | RoHS-compliant |
