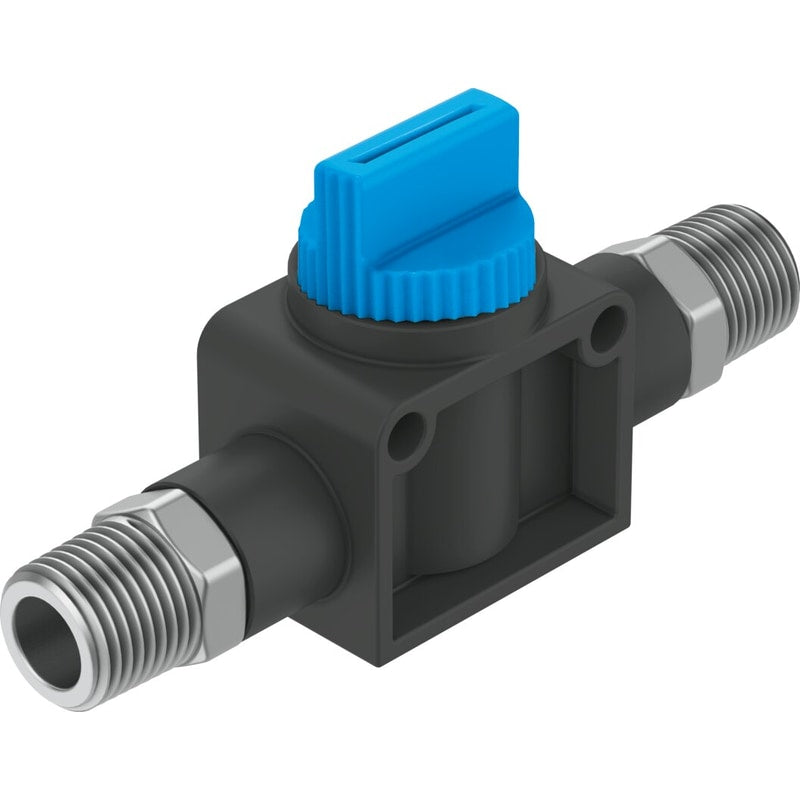

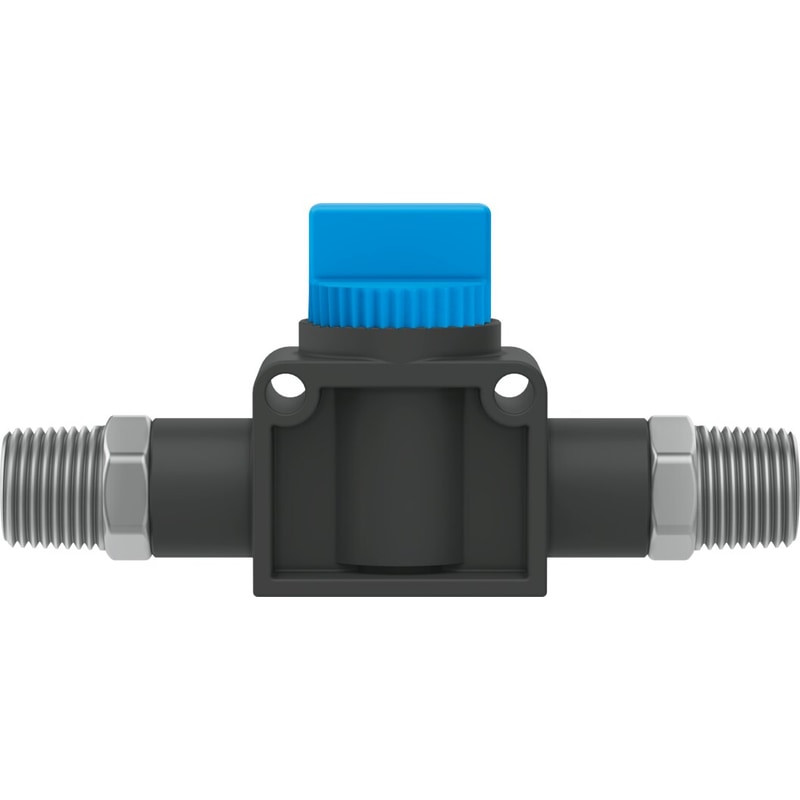

Shut-off valve
HE-3-3/8-3/8-NPT-U (Pack of 300)
190879
GTIN 4052568324551
Vendor Festo
- Valve function
- 3/2, bistable
- Pneumatic connection 1
- 3/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 797.4 l/min
- Operating pressure
- -0.95 bar - 10 bar
- Actuation type
- Manual
Regular price
$39.49
Unit price
HE-3-3/8-3/8-NPT-U (Pack of 300) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HE-3-3/8-3/8-NPT-U (Pack of 300)
Regular price
$39.49
Unit price
HE-3-3/8-3/8-NPT-U (Pack of 300) is backordered and will ship as soon as it is back in stock.
shut-off valve HE-3-3/8-3/8-NPT-U Part number: 190879 This type is suitable for vacuum.
| Valve function | 3/2 bistable |
|---|---|
| Pneumatic connection, port 1 | NPT3/8-18 |
| Pneumatic connection, port 2 | NPT3/8-18 |
| Type of actuation | manual |
| Mounting type | OptionalLine installationThreaded |
| Operating pressure | '-0.95 ... 10 bar |
| Ambient temperature | 0 ... 60 °C |
| Material housing | PBT-reinforced |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Design structure | Piston slide |
