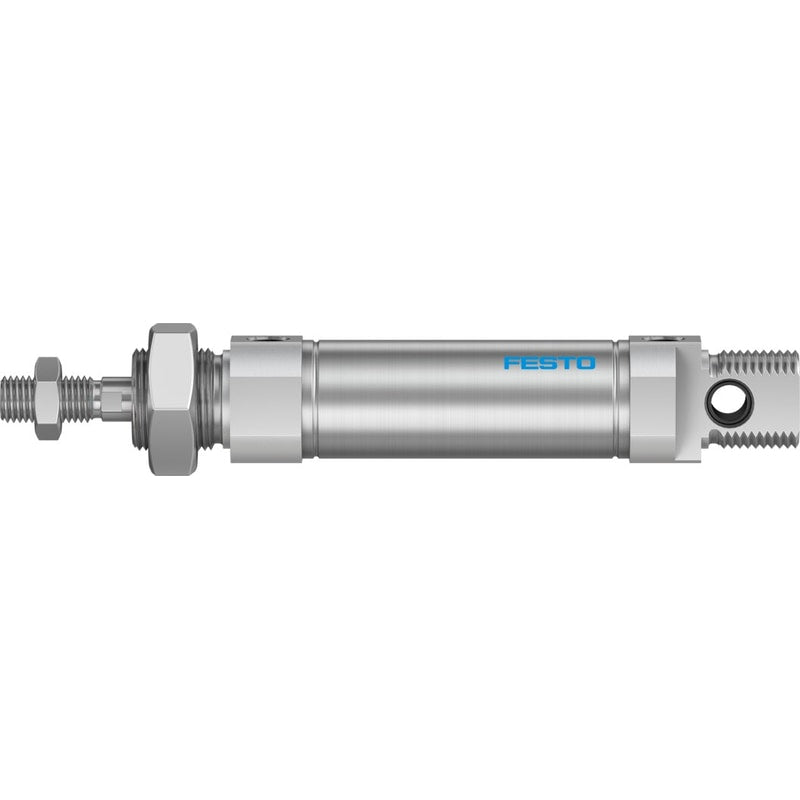

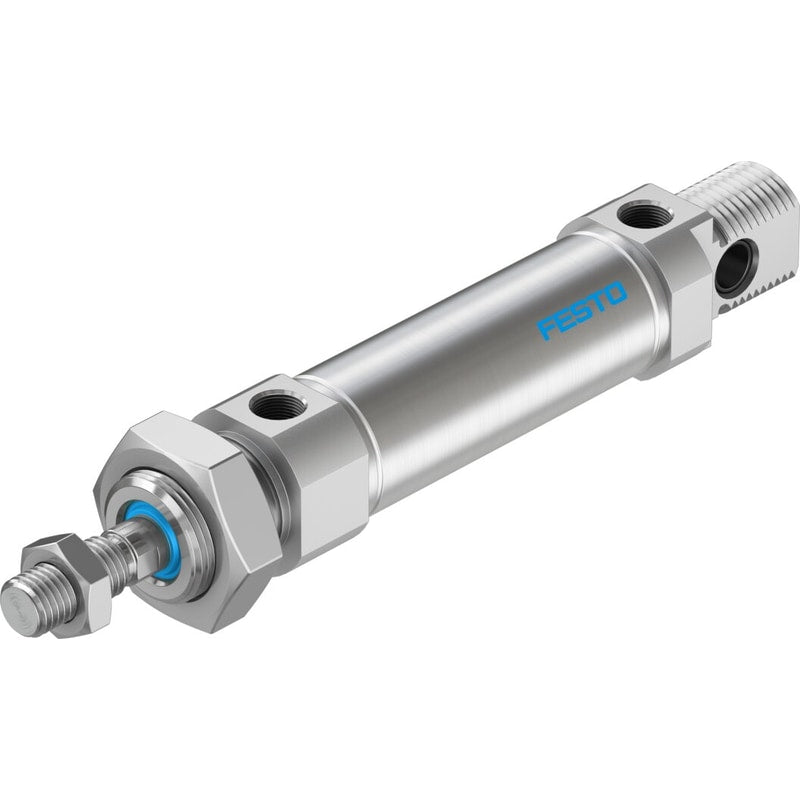

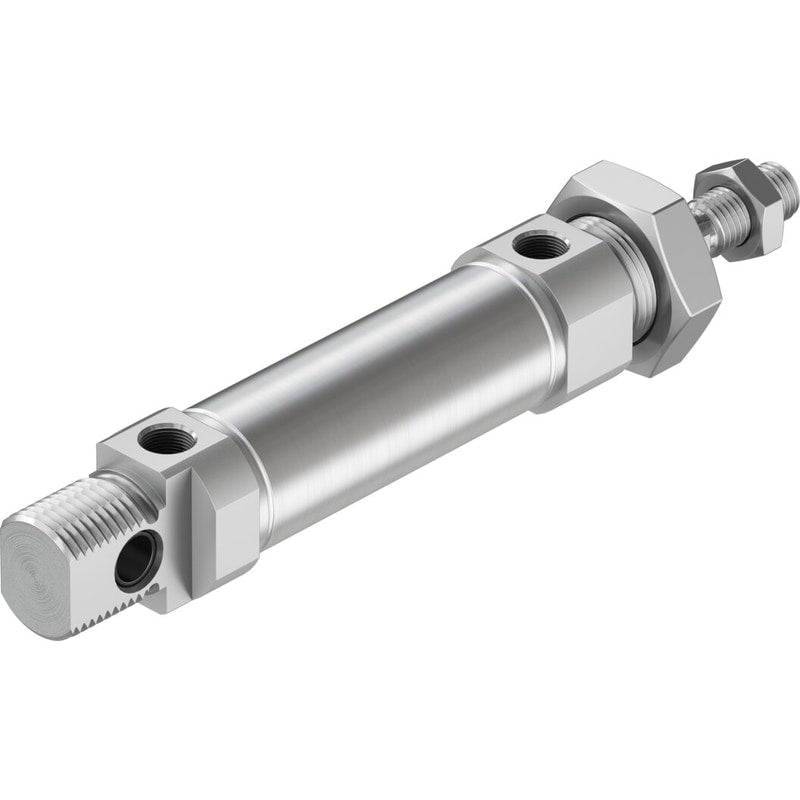

ISO cylinder
DSNU-25-35-PPS-A
1908324
GTIN 4052568108960
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 25 mm
- Theoretical force at 6 bar, advancing
- 294.5 N
- Stroke
- 35 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$81.84
Unit price
DSNU-25-35-PPS-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-25-35-PPS-A
Regular price
$81.84
Unit price
DSNU-25-35-PPS-A is backordered and will ship as soon as it is back in stock.
ISO cylinder DSNU-25-35-PPS-A Part number: 1908324 ★ Core product range with self-adjusting pneumatic end position cushioning
| Stroke | 35 mm |
|---|---|
| Piston diameter | 25 mm |
| Piston rod thread | M10x1,25 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Conforms to standard | CETOP RP 52 PISO 6432 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodCylinder barrel |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
