Push-in T-fitting
QSTF-1/4-3/8-U
190829
GTIN 4052568324087
Vendor Festo
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 6.5 mm
Regular price
$8.63
Unit price
QSTF-1/4-3/8-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSTF-1/4-3/8-U
Regular price
$8.63
Unit price
QSTF-1/4-3/8-U is backordered and will ship as soon as it is back in stock.

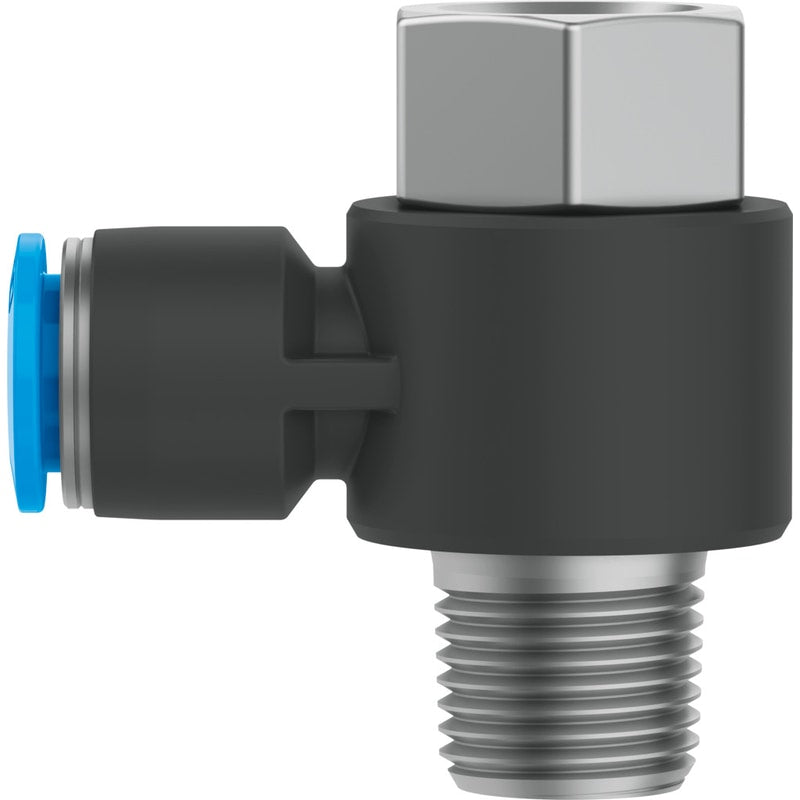

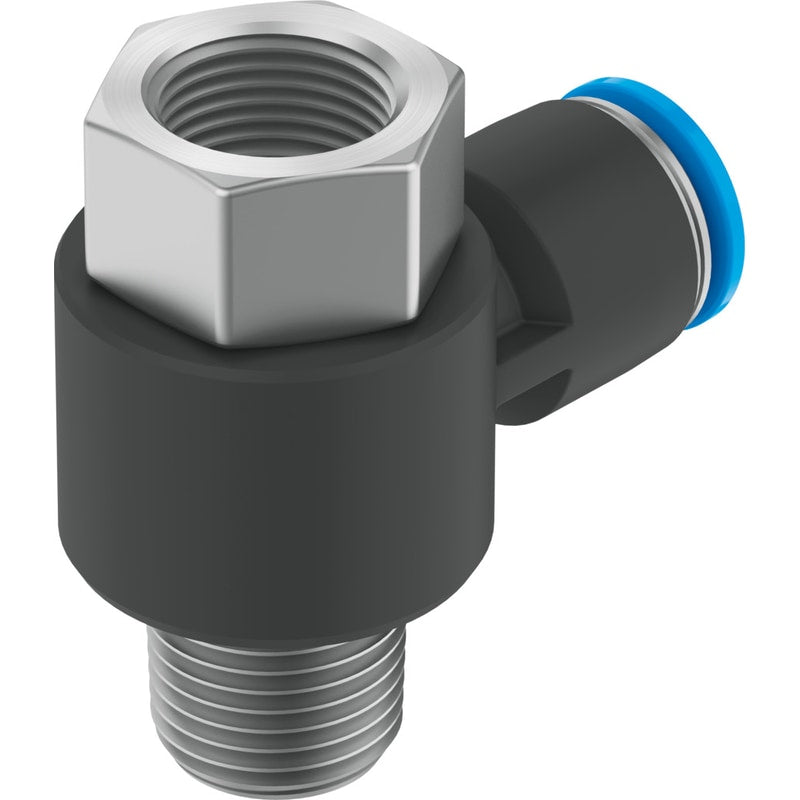

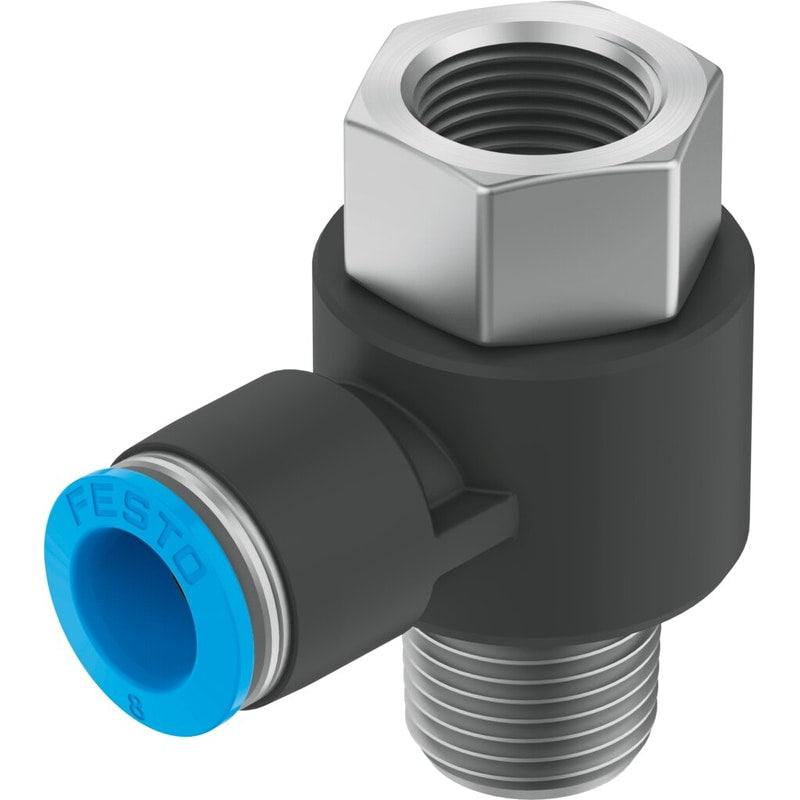

push-in T-fitting QSTF-1/4-3/8-U Part number: 190829 360° orientable, male and female thread with external hexagon.
| Fitting Type | Female Run Tee |
|---|---|
| Size | Standard |
| Nominal size | 4.4 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 14 Nm |
| Product weight | 43.5 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | Male thread NPT1/4-18Female thread NPT1/4-18 |
| connection 2 | 3/8" outside diameter, for tubing |
| Colour of release ring | Grey |
