Multiple distributor
QSLV6-3/8-1/2-U (Pack of 300)
190810
GTIN 4052568323998
Vendor Festo
- Pneumatic connection 1
- external thread 3/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- No. of supply lines
- 1
- No. of outlets
- 6
Regular price
$29.92
Unit price
QSLV6-3/8-1/2-U (Pack of 300) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSLV6-3/8-1/2-U (Pack of 300)
Regular price
$29.92
Unit price
QSLV6-3/8-1/2-U (Pack of 300) is backordered and will ship as soon as it is back in stock.

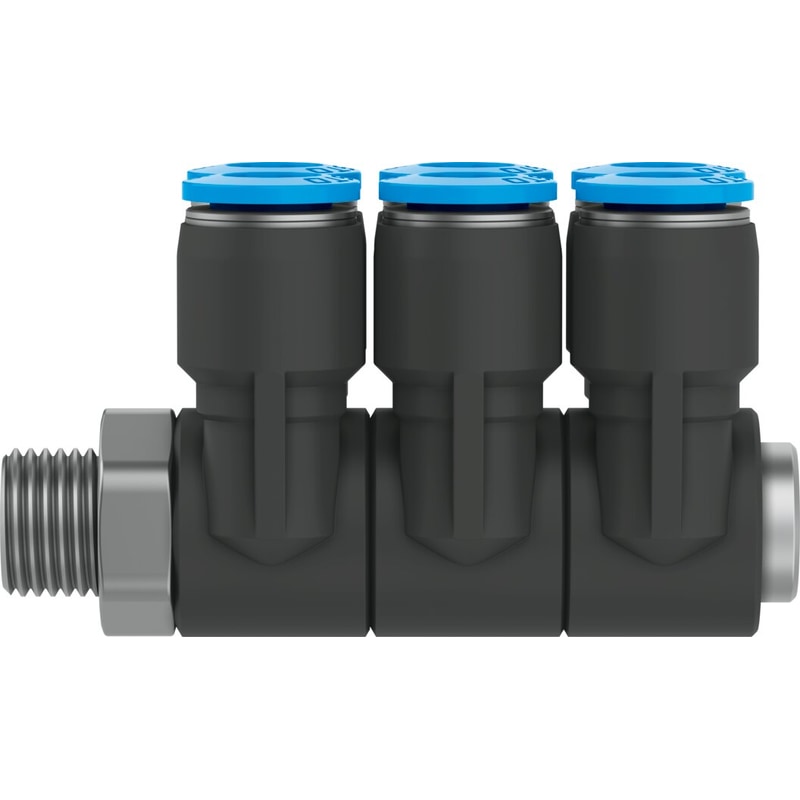

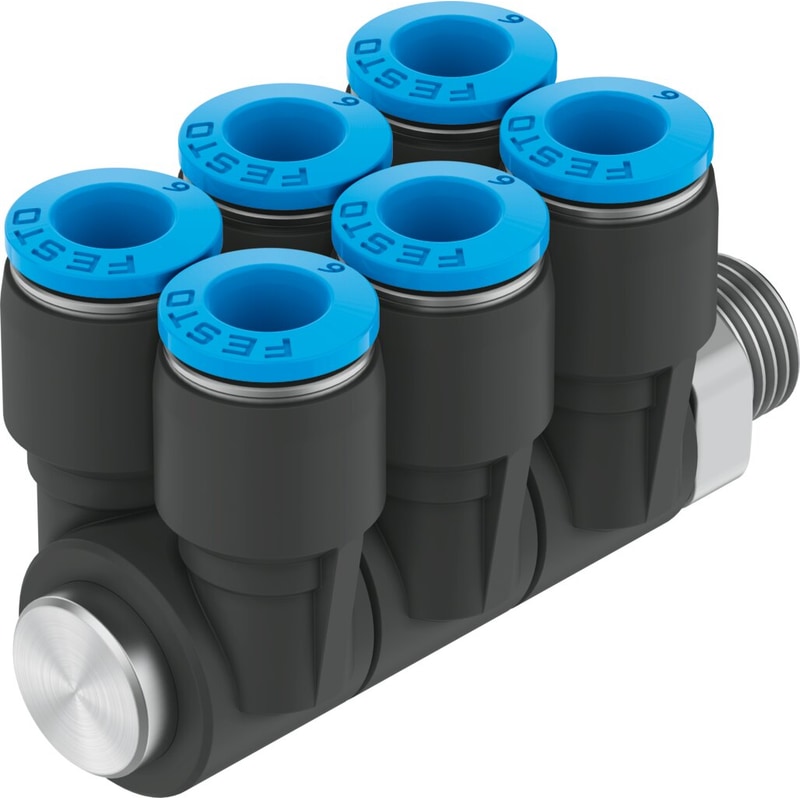

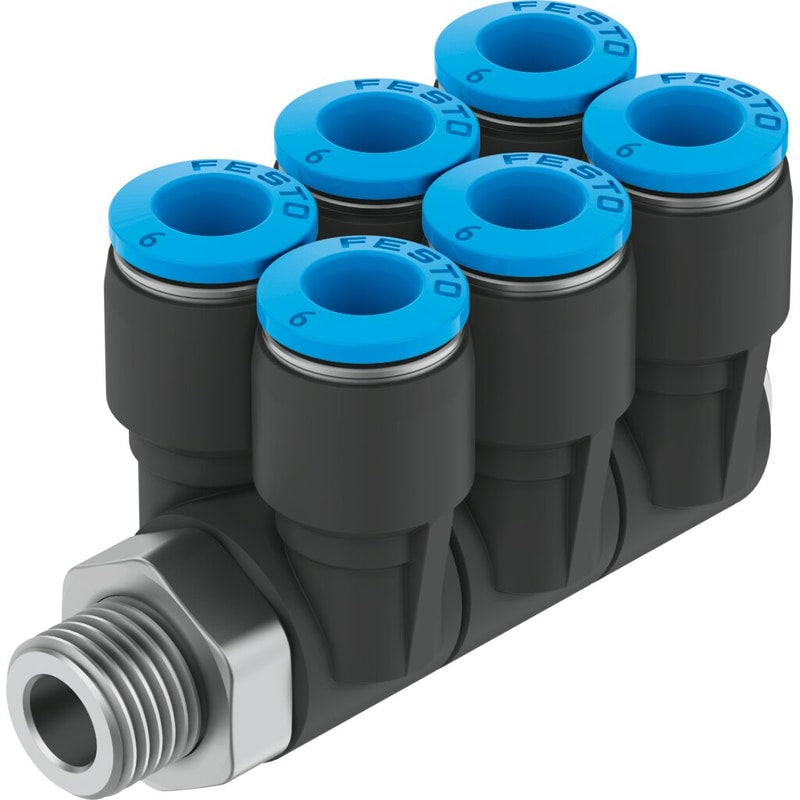

multiple distributor QSLV6-3/8-1/2-U Part number: 190810 6-fold, 360° orientable.
| Fitting Type | Tripple Branch Male Banjo |
|---|---|
| Size | Standard |
| Nominal size | 6.3 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 24 Nm |
| Product weight | 202 g |
| Number of outputs | 6 |
| Number of supply lines | 1 |
| connection 1 | Male thread NPT3/8-18 |
| connection 2 | 1/2" outside diameter, for tubing |
| Colour of release ring | Grey |
